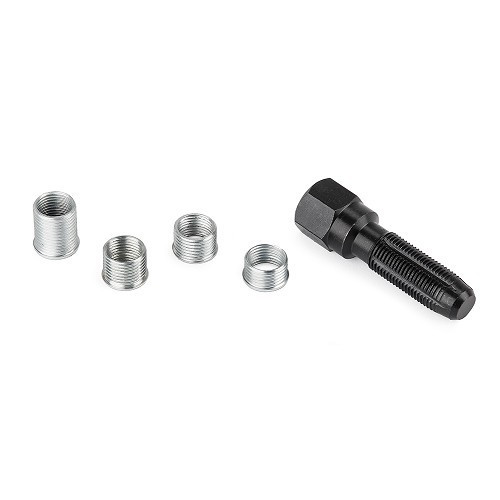

Engine thread repair kit

This TOOLATELIER tool kit will enable you to repair spark plug threads on most cylinder heads.

The principle is simple: the tool taps larger threads, so you can screw in the insert to match the size of your spark plug.
Once the insert is in place on your cylinder head, you can replace your spark plug.

For a 14 mm spark plug thread

Once the well has been tapped to 16 mm, add one of the inserts to change to 14 mm.

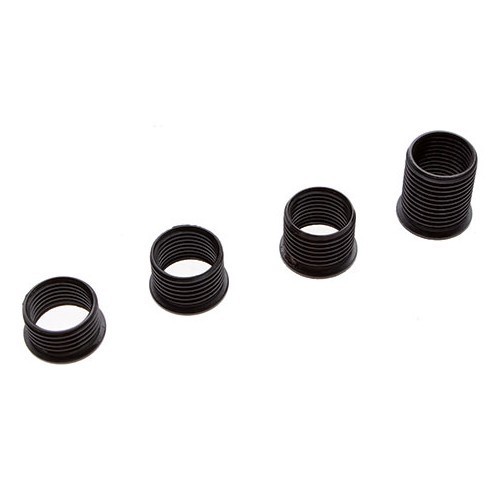

Supplied with 4 inserts of different lengths:
10 mm, 11.20 mm, 12.70 mm and 19 mm

Int. Ø M14 x 1.25
O.D.: M16 x 1.5

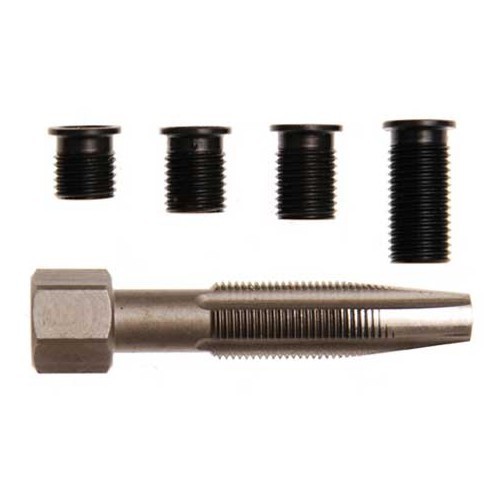

- suitable for repair of spark plug threads
- easy to use
- contains special HSS taps with 6-pt.-drive
and 4 threaded bushes, lengths
9.5 - 11.5 - 12.7 and 19 mm

- suitable for repair of spark plug threads
- easy to use
- contains special HSS taps with 6-pt.-drive
and 4 threaded bushes, lengths
9.5 - 11.5 - 12.7 and 19 mm

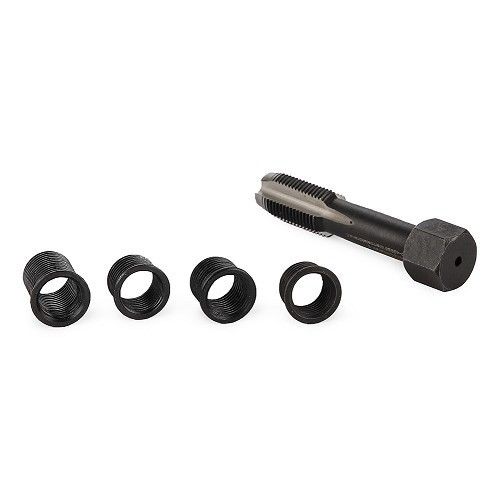

Thread type: M12 x 1.25

Supplied with 4 inserts of varying length: 9.50 mm, 11.50 mm, 12.70 mm and 19 mm

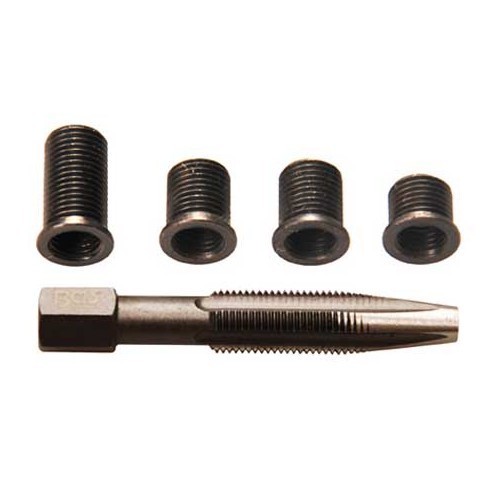

Designed for threading spark plug wells.

Size: M8 x 1.0 (11mm long)

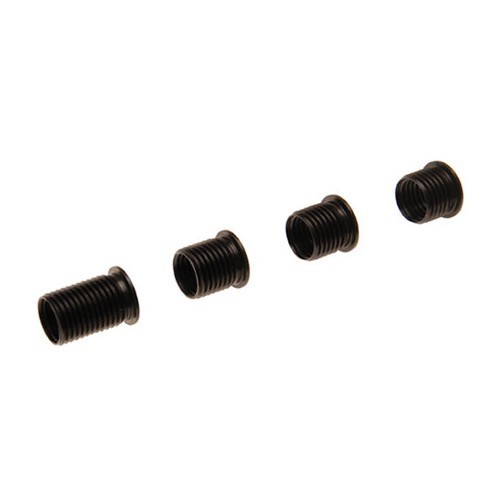

Spark plug repair kit - M10x1.00
Designed for threading spark plug wells.

Sizes:
M10 x 1.00 (12mm long)
M10 x 1.00 (19mm long)

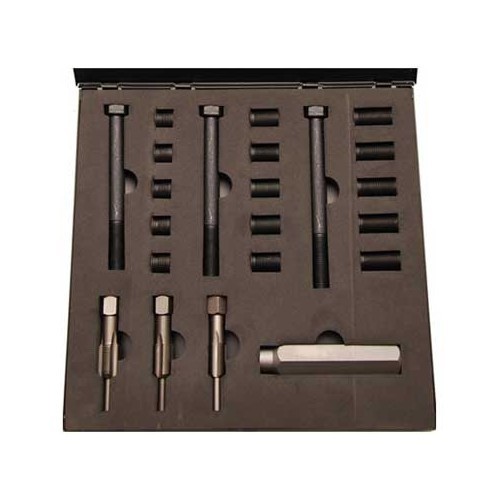

Spark plug repair kit - M12x1.25
Designed for threading spark plug wells.

Sizes:

M12 x 1.25 (12mm long)
M12 x 1.25 (19mm long)
M12 x 1.25 (26mm long)

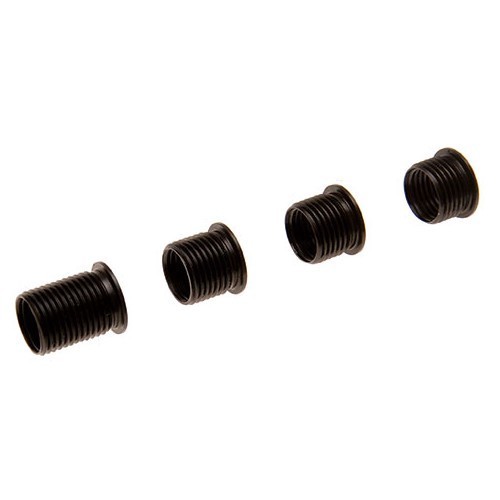

Sizes, various lengths: 9.50 mm, 11.50 mm, 12.70 mm and 19 mm

For reference UO69130 or equivalent

Sizes, various lengths: 10 mm, 11 mm, 13 mm and 19 mm

For reference TA00011 or equivalent

Sizes, various lengths: 10, 11, 13

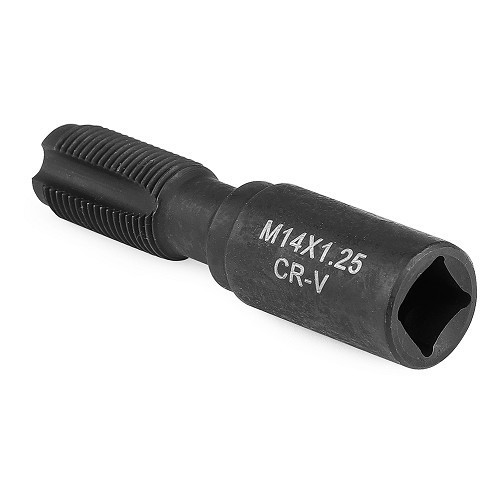

This 70 mm long comb is ideal for M14 x 1.25 mm spark plug threads.

The low, narrow profile, combined with its own large size, is convenient for hard-to-reach, confined areas.

The coating is made of manganese phosphate for greater resistance to corrosion.

Square drive: 3/8".

- for cleaning and regrooving of spark plug threads
in the cylinder head
Filet de 1,25
- length 270 mm, also suitable for cylinder heads
with deep-seated spark plugs
- 13 mm 6-pt. drive

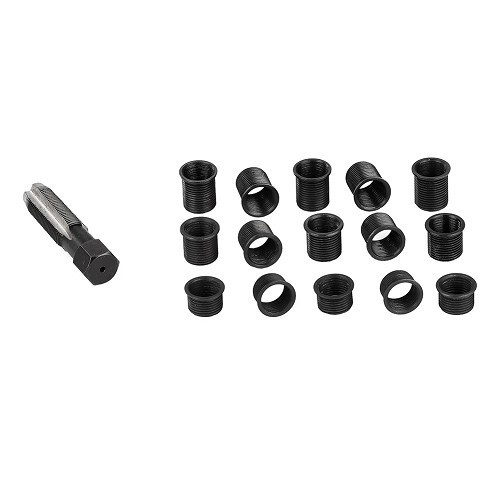

- 1 tap for M14 threaded bush, HSS-G
- 5x 11 mm tap inserts black finished
- 5x 16 mm tap inserts black finished
- 5x 19 mm tap inserts yellow Zinc plated

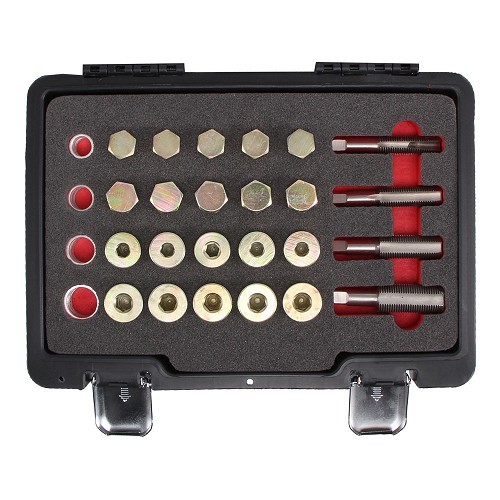

This kit is ideal to repair housing plugs. This universal set is suitable for a wide range of vehicles.

Content and sizes:

- 4 taps: M13 x 1.5 / M15 x 1.5 / M17 x 1.5 / M20 x 1.5 mm
- 5 x M13 x 1.5 mm plugs, male hexagon 17 mm
- 5 x M15 x 1.5 mm plugs, male hexagon 19 mm
- 5 x M17 x 1.5 mm plugs, female hexagon 8 mm
- 5 x M20 x 1.5 mm plugs, female hexagon 10 mm
- 10 aluminium seals: Ø 13 - 15 - 17 - 20 mm

Supplied in a storage case.

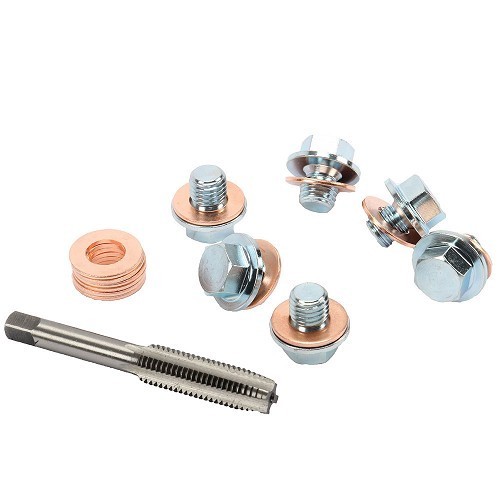

Description :

- 1 M11 x 1.5 tap
- 6 drain plugs
- 6 copper washers

Applications: PSA HDI engine, Ford 1.4 engine and 1.6 TDCI, Mazda, etc.

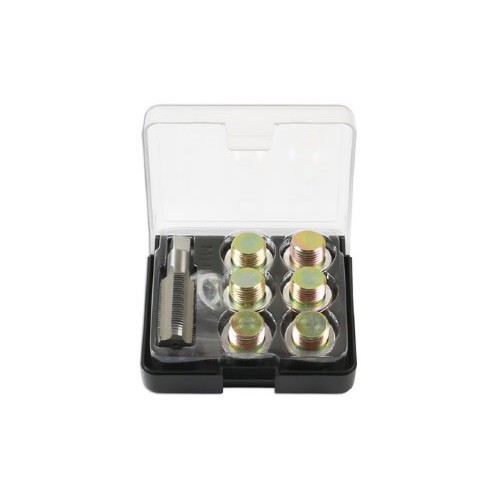

For use on M10 sumps when the thread has been damaged.

This repair kit is ideal for oil housings, gearbox housings where the threading is damaged, but also for threads on certain lambda sensors / oxygen probes.

Oil housings applications are for BMW V8/V12, Opel/Vauxhall, Hino Motors, Volvo, Dodge trucks.

Gearbox application are for BMW, Dodge, GMC, Nissan and Toyota.

The size is M18 x 1.50 with included, 1 tap, 6 drain plugs and 6 washers.

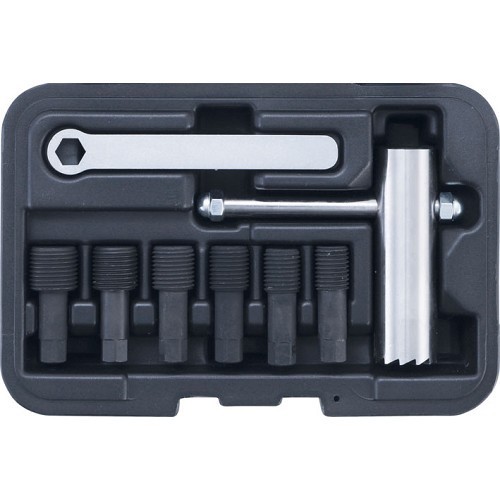

This tool set enables you to mill the damaged sealing surfaces on an oil drain plug in an oil pan.

Use for the following drain threads: M12 x 1.5 - M13 x 1.5 - M14 x 1.5 - M15 x 1.5 - M16 x 15 and M17 x 1.5.

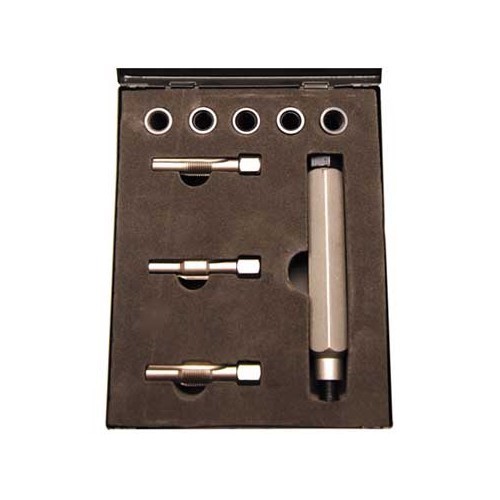

Designed for threading spark plug wells.

Size: M9 x 1.0 (11mm long)

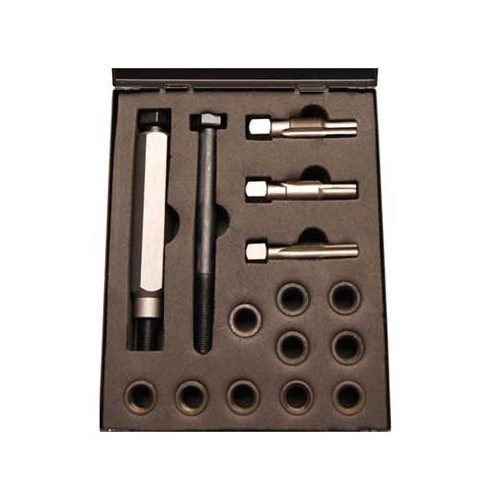

Spark plug repair kit - M10x1.25
Designed for threading spark plug wells.

Size: M10 x 1.25 (12mm long)

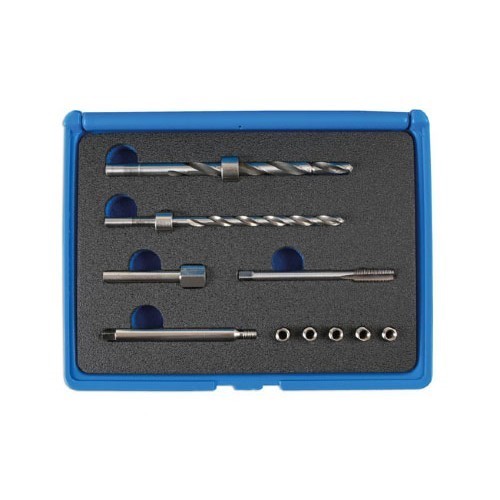

Ideal for refurbishment of the cylinder head threads for the injector bracket screw in Mercedes Benz CDi engines.

Contents of the kit:

- M8 x 1.0mm tap
- Stepped drill bit: 7 - 8mm
- Drill bit: 6mm
- Helicoil fitting tool
- Helicoils: 5 pieces
