Valve timing kit

Designed to keep the camshaft and crankshaft in position while changing the belt.

Applications:
- Citroën: C3111/DS3/DS3 Cabrio/C-Elysee
- Peugeot: 2008/208/308

Engine codes (latest generation PSA): EB0, EB2 in 1.0L and 1.2L - 3-cylinder engine

This tool is used to align the camshaft and crankshaft during the distribution of the 1.3 HDi and JTD engines of the PSA group.

Applications:

Citroën :
- Model : Nemo 2010 - 2015
- Engine : 1.3 HDi
- Engine code: FHZ(F13DTE5)

Fiat:
- Models:
Doblo/ Cargo 2004 - 2006
Idea 2004 - 2006
Panda 2003 - 2009
Punto 2003 - 2007
- Engines: 1.3 MultiJet/ JTD
- Engine codes: 169A1.000 / 188A8.000 / 188A9.000 / 199A3.000

Ford:
- Models: KA 2008 - 2015
- Engines: 1.3 TDCi
- Engine codes: 167A1.000 (FD4) BAAA/B

Peugeot :
- Models : Bipper 2010 - 2015
- Engines : 1.3 HDi
- Engine code : F13DTE5 (FHZ)

Suzuki :
- Models :
Ingis 2003 - 2009
Wagon 2003 - 2009
Swift 2003 - 2010
- Engines :1.3 DDiS
- Engine code: Z13DT

Opel/Vauxhall:
- Models:
Agila 2003 - 2008
Corsa-C 2003 - 2007
Corsa-D 2006 - 2009
Combo-C 2003 - 2009
Astra-H 2004 - 2009
Tigra-B 2004 - 2009
Meriva 2004 - 2009
- Engines: 1.3 CDTi
- Engine codes: Z13DT / Z13DTH / Z13DTJ

Engine specification : 2.5 TFSi 5 cylinders

Applications:
- Audi RS Q3 from 2013 to 2015
- RS3 from 2010 to 2016
- TT from 2009 to 2014

Engine codes: CZGA, CZGB, CEPA, CEPB, CTSA

This set of engine timing tools for Land Rover TDV8 4.4L is equivalent to the tools OEM JLR 303-1620, 303-1568, 303-1243, 3031571.

Applications include the Range Rover from 2010 and the Range Rover Sport from 2014.

-contains tools for locking the camshaft and crankshaft
- suitable for 1.6 and 1.8 L engines with timing belt,
installed in Opel / Vauxhall, Chevrolet, Fiat,
Alfa Romeo (2003-2012),
e.g. Astra G / H, Corsa D, Insignia, Meriva, Signum,
Vectra C, Zafira B (2003-2011)
- also suitable for Chevrolet Cruze,
Orlando 1.4 - 1.6 - 1.8 and Fiat Croma,
Alfa Romeo 159 with engines 939A4.000
- to be used as OEM tools:
KM-6628-A, 2000012000
KM-6340, 2000012100
KM-6333
KM-6625, 2000012800
KM-6349, KM 6130
KM-911

- contains tools for locking the camshaft and crankshaft
- suitable for 1.6 and 1.8 L engines with timing belt,
installed in Opel / Vauxhall, Chevrolet, Fiat,
Alfa Romeo (2003-2012),
e.g. Astra G / H, Corsa D, Insignia, Meriva, Signum,
Vectra C, Zafira B (2003-2011)
- also suitable for Chevrolet Cruze,
Orlando 1.4 - 1.6 - 1.8 and Fiat Croma,
Alfa Romeo 159 with engines 939A4.000
- to be used as OEM tools:
KM-6628-A, 2000012000
KM-6340, 2000012100
KM-6333
KM-6625, 2000012800
KM-6349, KM 6130
KM-911

Ideal for aligning the camshaft and crankshaft on Ford models 1.25/1.4/1.6 L 16 valves with variable valve timing (VVT) from 1996 to 2010.

Engine specifications: 1.25/1.4/1.6 L 16 valves

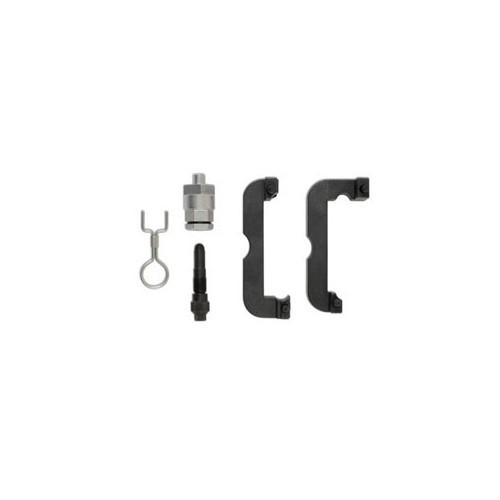

Thistiming tool kit for vehicles from the VAG group 2.5 / 2.8 / 3.0 / 3.2 L TFSi and FSi is ideal to adjust the timing when changing the cylinder head gasket, camshafts, etc.

They are compatible with:
- Audi: A4 (2014 to 2015), A5 (2014 to 2017), A6 (2012 to 2018), A7 (2010 to 2018), A8 (2010 to 2018), S4 (2014 to 2017), S5 (2011 to 2017), Q5 (2008 to 2017), Q7 (2010 to 2018), SQ5 (2013 to 2017).
- Volkswagen: Touareg 3.0 TFSI (2012 to 2017). .

These tools are equivalent to the OEM references T40133/1/2, T40058, T40069, T40071

This timing tool is for Audi V8 4.0 TFSi petrol engines. This engine can be found on the Audi A8, RS6, RS7, S6, S7 aand S8 models.

The engine codes are CEUA, CEUC, CGTA, CRDB, CTFA, CTGA, CTGE, CWUB, CWUC, DDTA.

The tool reference TB046679 is additional to lock the crankshaft rotation on a Audi V6/V8.

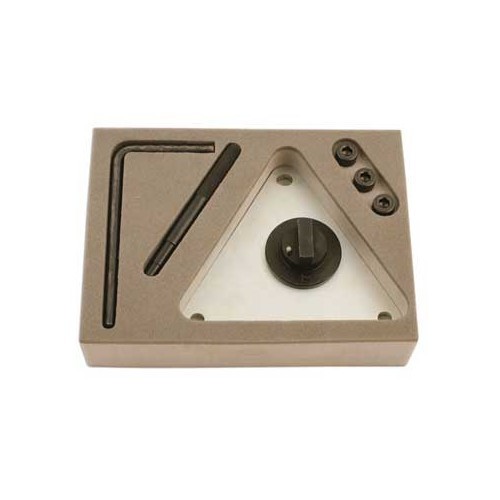

For Fiat: 500/500c since 2010, Panda since 2012, Punto since 2012

- For engine: 0.9 Twinair
- Engine code :
312A2.000

Other models (see PDF): for Alfa-Romeo

This set of tools is ideal for adjusting the valve train of PSA and Fiat vehicles.

The appropriate engine codes are LFW, RFU, RGX and RFW.

Composition:

6 mm crankshaft timing pin
Camshaft timing pin 10 mm
Camshaft locking pins
Timing belt tensioning tool

OEM part numbers are 0132Q, 0132QZ, 0132Z, 0132R, 1053AA, 1053AB, 1053ZY, 0153G, 4507TA, 4507TB, 5711TA, 7014TN, 9767.27, 7014TM, 0132X, 0132X1Z, 4507T, 4507TJ, 1860755000, 1860161000, KM955

This set of TOOLATELIER timing tools is designed for 1.4 12V engines on Fiat Brava and Bravo models.

Engine type: 1.4 12V

Engine codes :
- 182 A3.000 (Brava): 1995-1998
- 182 A5.000 (Bravo) : 1995-1998

This TOOLATELIETR timing kit is used for adjusting the camshaft and crankshaft on pre-2012 Mercedes M651s.

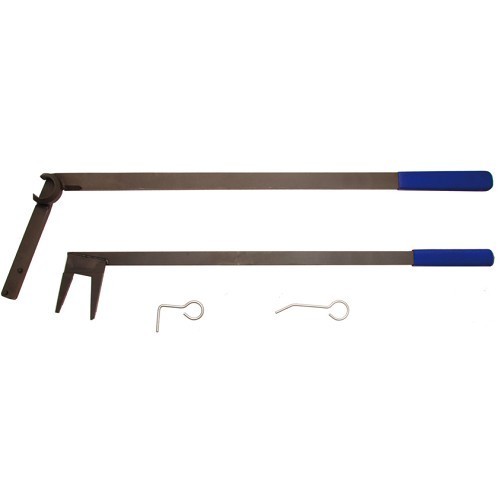

These tools are used to slacken the air conditioning and alternator ribbed belts.

This kit is suitable for Mini Cooper S and One

- Lever for Cooper S => OEM 118410
- centring pin for Cooper S => OEM 118470
- Lever for MINI One => OEM 118390
- centring pin for MINI One => OEM 118280

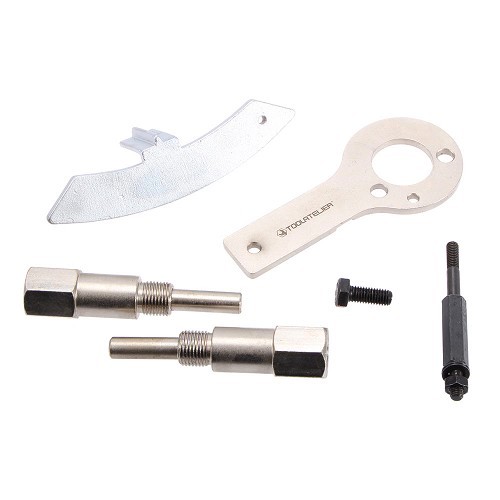

This TOOLATELIER tool kit is used for timing Fiat / Alfa Romeo and Lancia 1.6 - 1.9 - 2.0 and 2.4L JTD engines, including 1.9L 16V and 2.4L 20V.

For Fiat: Brava / Bravo / Croma / Doblo Cargo / GrandePunto / Idea / Multipla and Stilo

For Alfa Romeo: 145 / 146 / 147/ 156 / 159 and 166 GT

For Lancia: Kappa / Lybra /Musa and Thesis

It includes the components needed to lock the flywheel in order to install/remove the crankshaft pulley, and to lock the camshaft.

Distribution adjustment kit for Renault: 1.4, 1.6, 1.8 and 2.0l 16v

Engine type:
F4P 720, 722, 760
F4R 700, 701, 730, 740, 741, 744, 770, 771, 776, 780, 784, 786, 787
K4J 712, 713, 730, 732, 750
K4M 700, 701, 720, 724, 748, 760, 761, 764

Mesures:
- Ø of both roll pins: 8 mm
- Threaded roll pin lenght: 70 mm
- Unthreaded roll pin lenght: 65 mm with grip y 49mm without grip.

Content:
- 1 crankshaft adjustment roll pin
- 1 PMH adjustment roll pin
- Camshaft adjustment bar.

Constructor code:
MOT1489
MOT1054
MOT1496

This TOOLATELIER kit is used to adjust the injection pump of diesel and turbo diesel engines on vehicles from the VAG group (Volkswagen / Audi / Skoda).

Engine codes: CW, CS, KY, JX, JD, JP, 1X, 1Z, AFN, AFF, AHU, AHY, AJT, AHH, AAH, AEL, AJA, AAZ, AVF, ACV, AXL, AofG, AYC, AXG.

Contents :

- 1 dial indicator
- 1 comparator extension
- 2 adapters
- 1 injection pump locking pin
- 1 camshaft aligner (also used for timing belt change)

Vehicle types: Touareg, Phaeton and Transporter

5 and 10-cylinder engine types (Diesel):

- 2.5L TDI/PD (with pump injector)

Engine codes: BAC, BLK, BPD, AXD, AXE, BLJ, BNZ, BPC (05-09)

- 5.0L TDI

Engine codes: AYH, FMB, BLE, BWF (03-09)

This TOOLATELIER timing tool kit is designed for VAG 1.4, 1.9, 2.0l TDi engines with pump injector (1996-2010 ) except 2.0l TDi 16S (oval crankshaft pulley).

Timing at 12h and 1h

Vehicle types :

Volkswagen: Fox,Lupo, Polo, Beetle, Bora, Caddy, Golf III, IV, V, Jetta, Passat, Sharan, Touran, Transporter and Tiguan.
Audi: A3, A4, A5, A6
Skoda: OctaviaII
Ford: Galaxy ZAE engine and ASZ1 VAG

Composition :

- Crankshaft locking tools (for drilled and undrilled engines)
- Camshaft locking pins

Part numbers: T10050 / T10100

ATTENTION: The 2 tools, 12h and 1h, must be positioned on the side of the crankshaft pulley and not from above.

Do not use the camshaft pin to loosen the 3 pulley screws = risk of pulley breakage.

This TOOLATELIER timing tool kit includes everything you need to lock the crankshaft, camshaft pulley and fuel pump pulley in their timing position. Ideal for timing belt removal and replacement.
Includes tools for 1.6 and 2.0 TDi common-rail diesel engines after 2012.
Compatible with Audi, Seat, Skoda and Volkswagen engine codes:
- 1.6 l: CLHA / CLHB / CKKA / CRKB
- 2.0 l: CKFB / CKFC / CRBC / CRBD / CRCC / CRFA / CRFC / CRLB / CRLC / CRMB / CRVA / CRVC / CSUA / CSUB / CUNA / CUPA / CKFB / CKFC
