Valve timing kit

This timing tool kit for Porsche 2.5 / 2.8 / 3.0 / 3.2 L TFSi and FSi is ideal to adjust the timing when changing the cylinder head gasket, camshafts, etc.

It is compatible with a Porsche Cayenne S Hybrid (2010-2014), Panamera (2011-2013).

These tools are equivalent to the OEM references T40133/1/2, T40058, T40069, T40071

This TOOLATELIER timing tool is specific to Fiat 1.2 and 1.4 8V petrol engines.

It is designed for Fiat 500, Idea, Linea, Punto, Doblo and Panda models.

Engine codes :

- 169A4.000
- 1999A4.000/350A1.000
- 188A4.000EVO 2

These TOOLATELIER tools can be used to adjust engine timing when replacing the timing chain

Timing tools for the BMW Diesel, type M47 and M57 equipping the following BMWs:

Type M47:
- 118d E87-E81-E88 from 2004 to 2011
- 120d E87-E81-E88 from 2004 to 2011
- 318d E46 from 2000 to 2005
- 320d E46 from 1998 to 2002

Type M57:
- 330d E46 from 1999 to 2003
- 525d E39 from 1999 to 2004
- 530d E39 from 1998 to 2003
- 730d E38 from 1998 to 2002
- X5 E53 from 2000 to 2003


These tools are also suitable for some Land Rover models, equipped with original BMW engines:

- Freelander Td4 from 2000 to 2005
- Range Rover Td6 from 2002 to 2006.

This kit provides essential locking tools required when removing drive chains from camshafts on 1.2 FSi/TFSipetrol engines.
Includes 2 alignment pins for the supercharger compressor on engines equipped with it.

Engine: 1.2 FSi / TFSi

For the following vehicles:
Audi: A1, A3, A3 Sportback, A3 Cabriolet
Seat: Altea, Altea XL, Ibiza, Ibiza Sport coupé, Leon, Toledo
Skoda: Fabia, FabiaCombi, Rapid, Oktavia, Oktavia Combi, Roomster, Yeti
VW: New Beetle, Caddy, Golf, Golf Plus, Golf Cabriolet, Golf Variant, Jetta, Polo, Touran

Timing kit enabling the adjustment and correction of the timing of the intake camshaft. This set of tools is required for Porsche Cayenne / Panamera models dated after 2008.

Contents:

- Camshaft gauge for Panamera / Cayenne after 2008 => OEM 9678/1
- Camshaft gauge for Cayenne => OEM 9678
- Auxiliary chain tensioner for Cayenne after 2008 => OEM 9683/1
- 27 mm, 3/8" socket => OEM 9714
- Crankshaft alignment tool => OEM 9595/1

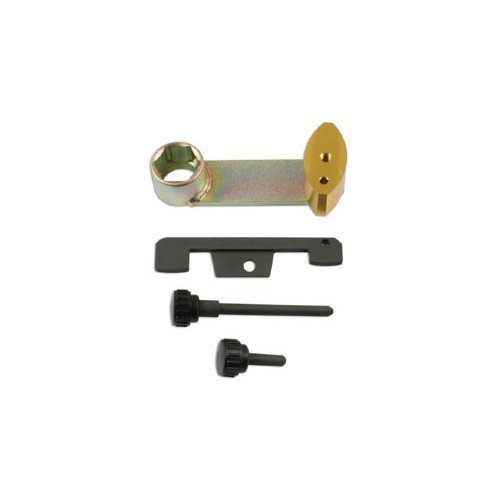

Engine timing tools for Porsche 911 type 996/997

Contents:

- Camshaft alignment tools for 996/997 => OEM 9685
- Locking pin for 997 => OEM 9595, 9595/1
- Camshaft locking tool suitable for M97 / 01 => OEM 9686

This kit is used to align the balancing shaft. It is used when replacing the timing chain, replacing the crankshaft gasket, replacing the cylinder head gasket, etc.

Models:

BMW: 1.6 (N40 / N45 / N45T, B16, B16A, B16AC) 1.8 / 2.0 (N42 / N46/ N46T) 2.0 / 3,0 (N51 / N52 / N52K / N53 / N54)

Peugeot & Citroen (PSA): 1.4 / 1.6 16V (EP3 / EP6 / EP6DT / EP6DTS)

Mini: 1.4 / 1,6 (N12 / N14)

This set of TOOLATELIER timing tools is used for timing adjustment during belt replacement, cylinder head repairs...

Engine: 1.9 CDTi

Engine codes: Z19DT, Z19DTH, Z19DTL

Applications :

Opel: Astra-H, Vectra-C, Signum (04-07), Zafira-B (05-07)
Saab: 9-3 (04-08), 9-5 (05-08)

Ideal to set and check the timing of BMW N42 / N46 / N46T engines with Vanos unit

BMW models:

- E81 (116i / 118i / 120i), E87 (118i / 120i)
- E88 (120i), E46 (316i / 316ti / 316i / 318ci / 318ti)
- E90 (318i / 320i), E91 (318i / 320i), E92 (320i)
- E93 (320i), E60 (520i), E83 (X3 2.0), E85 (Z4 2.0)

Contents:

- Pre-tensioning tool for camshaft, such as OEM 119340
- Sensor gear alignment tool, such as OEM 119350
-Timing tool for E camshaft, such as OEM 119292
-Timing tool for A camshaft, such as OEM 119291
- Timing tool for notched pulley, such as OEM 115120
- Camshaft adjustment, such as OEM 119270
- Bolt for timing too, such as OEM 119293

These tools are suitable for BMWs with 6 cylinders, 3.2L S54 driven by chain.

Models:

M3 - E46 from 2000
Z3 (M) - E36 from 2000
Z4 (M) - E85 / E86 from 2006
M3 (CSL) - E46 from 2003

Engine: S54
Engine capacity: 3200

This set of TOOLATELIER timing tools is required for VAG 1.8 and 2.0 FSi / TSi / TFSi engines.

These camshaft locking tools are used on Volkswagen, Audi, Skoda and Seat models.

Example models: Golf, Touran, Audi A3

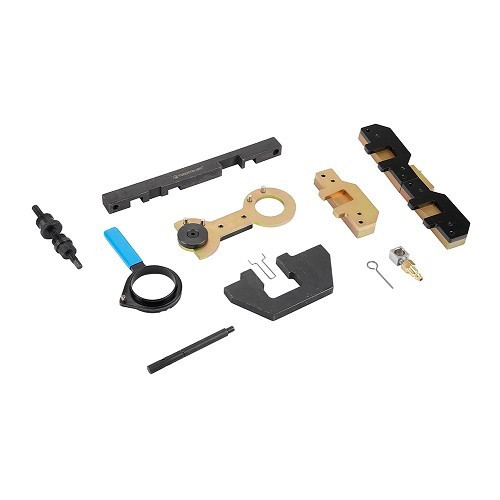

Ce set d'outils de calage de marque TOOLATELIER est utilisé pour les véhicules du groupe BMW.

Modèles :

- série 3 (E30, E36, E46)
- série 5 (E34, E39, E60, E61)
- série 7 (E32, E38, E65, E66)
- série 8 (E31)
- X3 (E83)
- X5 (E53)
- Z3, Z4 (E85)

Codes moteurs : M40 / M44 / M50 / M52 / M54 / M56

Contenu :

Outil de blocage de l'arbre à cames, OEM 112300
Outil d'alignement d'arbre à cames, OEM 113190
Outil d'alignement d'arbre à cames, OEM 113240
Outil de réglage Vanos, OEM 116180
Outil de réglage double Vanos, OEM 116150
Outil de pré-tension de chaîne, OEM 114220
Clé pour unité Vanos, OEM 115490
Raccord d'air comprimé, OEM 113450
Jeu de blocage, OEM 113290, composé d'un clips de blocage, OEM 113291 et d'une goupille de blocage, OEM 113292

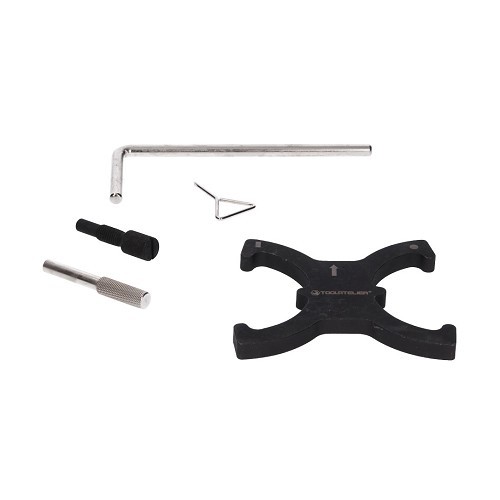

This five piece set is essential for replacing the Cam belt on Ford Focus/Cmax 1.6 Ti-VCT with engine code HXDA (2003-2007) plus 2.0 TDCi with engine codes G6DA, G6DB, G6DC 2003-2007.
Set includes Camshaft Sprocket Holding Tool (OEM 303-1097),
Tensioner Pulley Locking Pin ( OEM 303-1054)
Flywheel Timing Pin (OEM 303-1059), Crankshaft timing pin (OEM 303-748),
Flywheel Timing Pin (OEM 303-1059), Crankshaft timing pin (OEM 303-748),
Camshaft Sprocket Locking Tool (OEM 303-735).

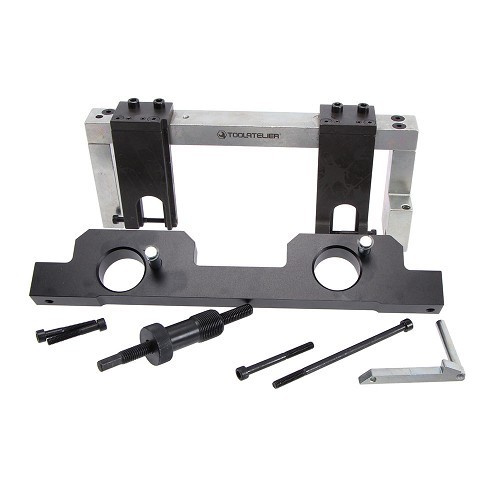

Tools to set the timing of BMW petrol engines with N20 and N26 chain.

Models:

BMW 1-Series F20/21: 125i from 2012 to 2014
BMW 3-Series F30/31: 320i/xDrive, 328i, 328i/xDrive from 2012 to 2014
BMW 5-Series F10/11: 520i, 528i, 528i/xDrive from 2010 to 2014
BMW X1 E84 : sDrive18i, sDrive20i, sDrive28i from 2011 to 2014
BMW X3 F25 : sDrive20i, sDrive28i from 2011 to 2014
BMW Z4 E89 : sDrive18i, sDrive20i, sDrive28i from 2011 to 2014

Engine code:
N20 / N20 B20 / N20 B20A / N20 B20B / N26 B20

Ideal for locking the camshaft and crankshaft on 5-cylinder Volvo 2.0 and 2.5 L Diesel models.

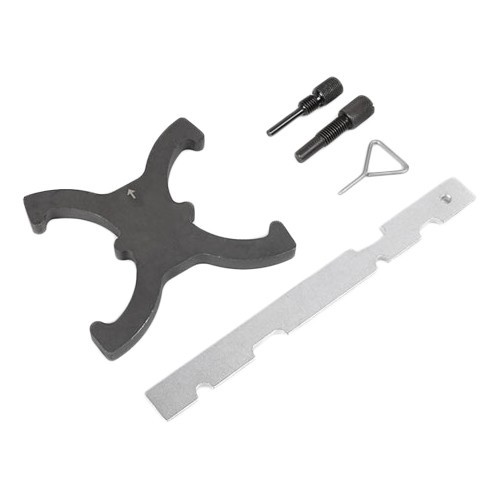

Ideal for aligning the camshaft and crankshaft on Mazda models 1.25/1.4/1.6 L 16 valves with variable valve timing (VVT) from 1996 to 2010.

Engine specifications: 1.25/1.4/1.6 L 16 valves

This set enables replacement of the timing chain on petrol engines in the VAG group 2.8/3.2/3.6/4.0/6.0 and 6.3 L with 6 & 8 cylinders.

Applications:

- Volkswagen: Phaeton, Touareg, Passat, Passat CC, Bora, Eos, Golf 4, Golf 4 Estate, Golf 5, Sharan, Transporter T4, Transporter T5
- Audi: Q7, A8, S8, A3, A3 Sportback, TT
- Skoda: Superb
- Porsche: Cayenne

Engine codes: BAN, BAP, BTT, BJN, BDN, BDP, BDE, BUB, BFH, BJS, BML, AYT, BKL, BRK, AYL, AZZ, BAA, BKJ, BMV, BRJ, AMV, BDL, BDM, BKK, BHK, BHL, CEJA, CTNA, BDB, BMJ, CDVA, AXZ, BWS, CPFA, CHNA, CMVA, CGRA, CMTA, CBRA, M55/02 & M55/01

Suitable for engines from 2001 to 2016

This kit provides the essential locking tools required when removing the camshaft drive chains on 1.2 TSi/TFSi petrol engines
Includes 2 guide pins for engines with a supercharger fitted.

Engine: 1.2 TSi/TFSi
VAG ranges: 2009 to 2017
Engine codes: CBZA, CBZB, CBZC

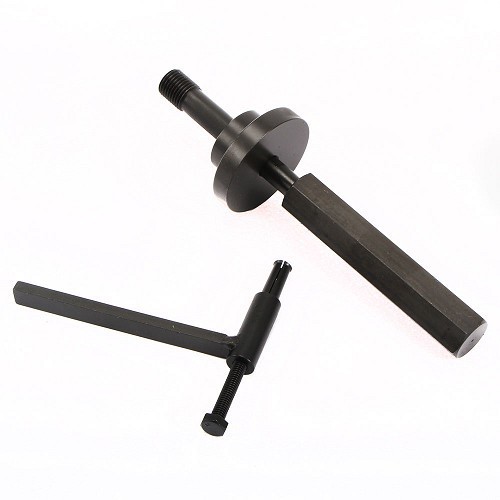

This kit helps to remove the drive chain from Diesel pump used on Ford 1.8 TDdi/TDci engines

Applications:

- 1.8L Duratorq-TDCi/TDdi Diesel
- 1.8L Endura-DE/DI Diesel

Engine codes:

BHPA-HCPA-KKDA-C9DC-RTN/RTQ-RTP-C9DC-RTN/RTQ-RTP-KKDA-KKDB-F9DA/B-FFDA
-BHDA/B-C9DA/B-C9DC-BHPA-HCPA-KKDA-FFWA-QYWA-FFBA-KHBA-QYBA-FFWA-QYWA-HCPA-HCPB-P7PA-P9PA-P9PB-R2PA-R3PA-RWPA-RWPC-BHPA-HCPA-HCPB-P7PA-P9PA-P9PB-R2PA-R3PA-RWPA-RWPC-BHPA

Contents:

- timing chain front cover alignment tool
- pump pulley holding tool
