Vanos

For Saloon, Coupé & Cabriolet:
- M3 S50

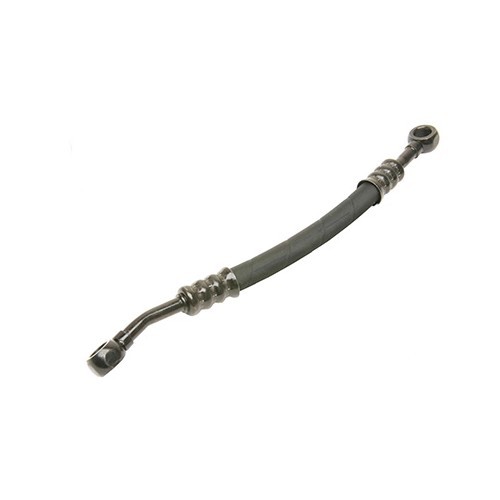

Over time, the hose crimps become worn and cause oil leaks. In addition, this can cause a loss of oil pressure.

Don't wait to replace this hose at the first sign of wear.

Compatible for BMW 3 series E36:
- 320i and 325i M50TU engine with single VANOS

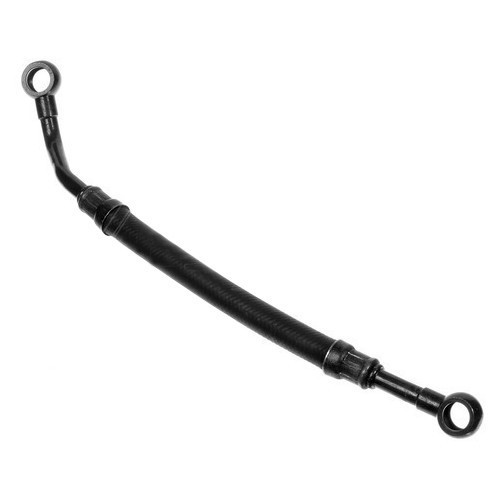

Vanos unit oil supply pipe 14 mm fitting for BMW series 3 E36:

Sedan:
- 320i 150hp from 12/1993 to 05/1998 (engine code M52B20)
- 323i 170cv from 07/1994 to 05/1998 (engine code M52B25)
- 328i 193cv from 07/1994 to 04/1998 (engine code M52B28)

Touring:
- 320i 150hp from 05/1994 to 05/1999 (engine code M52B20)
- 323i 170cv from 07/1995 to 05/1999 (engine code M52B25)
- 328i 193cv from 10/1994 to 05/1999 (engine code M52B28)

Coupé :
- 320i 150cv from 01/1994 to 11/1998 (engine code M52B20)
- 323i 170cv from 07/1994 to 04/1999 (engine code M52B25)
- 328i 193cv from 07/1994 to 04/1999 (engine code M52B28)

Convertible:
- 320i 150hp from 05/1994 to 10/1999 (engine code M52B20)
- 323i 170cv from 03/1995 to 09/1999 (engine code M52B25)
- 328i 193cv from 07/1994 to 09/1999 (engine code M52B28)

Compact:
- 323ti 170cv from 01/1997 to 08/2000 (engine code M52B25)

The 2 banjo screws (M14X1.5X26) and the 4 seals (14X20) are not supplied with this vanos system oil hose.

Double vanos unit oil supply pipe 14 mm fitting for BMW 3 series E46:

Sedan:
- 320i 150hp phase 1 from 07/1997 to 07/2001 (engine code M52B20TU)
- 320i 170hp phase 1 and phase 2 from 12/1999 to 02/2005 (engine code M54B22)
- 323i 170hp phase 1 from 07/1997 to 10/2000 (engine code M52B25TU)
- 325i 192hp phase 1 and phase 2 from 01/2000 to 02/2005 (engine code M54B25)
- 325xi 4x4 192cv phase 2 from 01/2000 to 12/2004 (engine code M54B25)
- 328i 193cv phase 1 from 04/1997 to 06/2000 (engine code M52B28TU)
- 330i 231hp phase 1 and phase 2 from 09/1999 to 02/2005 (engine code M54B30)
- 330xi 4x4 231hp phase 1 and phase 2 from 09/1999 to 12/2004 (engine code M54B30)

Touring:
- 320i 150hp phase 1 from 04/1999 to 05/2000 (engine code M52B20TU)
- 320i 170hp phase 1 and phase 12 from 06/2000 to 07/2005 (engine code M54B22)
- 323i 170hp phase 1 from 01/2000 to 09/2000 (engine code M52B25TU)
- 325i 192hp phase 1 and phase 2 from 01/2000 to 07/2005 (engine code M54B25)
- 325xi 4x4 192hp phase 2 from 02/2000 to 05/2005 (engine code M54B25)
- 328i 193hp phase 1 from 01/1999 to 06/2000 (engine code M52B28TU)
- 330i 231hp phase 1 and phase 2 from 01/2000 to 07/2005 (engine code M54B30)
- 330xi 4x4 231hp phase 1 and phase 2 from 01/2000 to 05/2005 (engine code M54B30)

Chopped off :
- 320ci 150cv phase 1 from 11/1998 to 08/2001 (engine code M52B20TU)
- 320ci 170cv phase 1 and phase 2 from 08/2000 to 05/2006 (engine code M54B22)
- 323ci 170cv phase 1 from 03/1998 to 08/2000 (engine code M52B25TU)
- 325ci 192cv phase 1 and phase 2 from 01/2000 to 05/2006 (engine code M54B25)
- 328ci 193cv phase 1 from 03/1998 to 06/2000 (engine code M52B28TU)
- 330ci 231hp phase 1 and phase 2 from 09/1999 to 05/2006 (engine code M54B30)

Convertible:
- 320ci 170cv phase 1 and phase 2 from 01/2001 to 08/2006 (engine code M54B22)
- 323ci 170cv phase 1 from 01/2000 to 09/2000 (engine code M52B25TU)
- 325ci 192cv phase 1 and phase 2 from 01/2001 to 08/2006 (engine code M54B25)
- 330ci 231hp phase 1 and phase 2 from 01/2000 to 08/2006 (engine code M54B30)

Compact:
- 325ti 192cv phase 1 and phase 2 from 01/2001 to 12/2004 (engine code M54B25)

The 2 banjo screws (M14X1.5X26) and the 4 seals (14X20) are not supplied with this vanos system oil hose.

Double vanos unit oil supply pipe 14 mm fitting for BMW 5 series E39:

Sedan:
- 520i 2.0l 150hp from 03/1995 to 07/1998 (engine code M52B20 single vanos)
- 520i 2.0l 150cv from 08/1998 to 11/2002 (engine code M52B20TU)
- 520i 2.2l 170cv from 03/2000 to 07/2003 (engine code M54B22)
- 523i 170cv from 02/1995 to 07/1998 (engine code M52B25 single vanos)
- 523i 170cv from 08/1998 to 08/2000 (engine code M52B25TU)
- 525i 192cv from 11/1999 to 07/2003 (engine code M54B25)
- 528i 193cv from 02/1995 to 07/1998 (engine code M52B28 single vanos)
- 528i 193cv from 08/1998 to 08/2000 (engine code M52B28TU)
- 530i 231cv from 03/2000 to 07/2003 (engine code M54B30)

Touring:
- 520i 2.0l 150hp from 09/1996 to 07/1998 (engine code M52B20 single vanos)
- 520i 2.0l 150cv from 08/1998 to 07/2001 (engine code M52B20TU)
- 520i 2.2l 170cv from 04/2000 to 12/2003 (engine code M54B20)
- 523i 170cv from 09/1996 to 07/1998 (engine code M52B25 single vanos)
- 523i 170cv from 08/1998 to 08/2000 (engine code M52B25TU)
- 525i 192cv from 11/1999 to 12/2003 (engine code M54B25)
- 528i 193cv from 05/1996 to 07/1998 (engine code M52B28 single vanos)
- 528i 193cv from 08/1998 to 08/2000 (engine code M52B28TU)
- 530i 231cv from 11/1999 to 12/2003 (engine code M54B30)

The 2 banjo screws (M14X1.5X26) and the 4 seals (14X20) are not supplied with this vanos system oil hose.

Dual vanos unit oil supply hose 14mm fitting for BMW 5 series E60 Sedan and E61 Touring:

E60 Sedan:
- 520i 170hp phase 1 from 02/2002 to 02/2005 (engine code M54B22)
- 525i 192hp phase 1 from 01/2002 to 02/2007 (engine code M54B25)
- 530i 231hp phase 1 from 12/2001 to 02/2005 (engine code M54B30)

E61 Touring:
- 525i 192hp phase 1 from 10/2002 to 02/2005 (engine code M54B25)

The 2 banjo bolts (M14X1.5X26) and 4 gaskets (14X20) are not supplied with this vanos system oil hardness.

Dual vanos unit oil supply hose 14mm fitting for BMW X5 E53:

- 3.0i 6 cylinder 231hp phase 1 from 08/1999 to 09/2006 (engine code M54B30)

The 2 banjo bolts (M14X1.5X26) and 4 gaskets (14X20) are not supplied with this vanos system oil hose.

Double vanos unit oil supply pipe 14 mm fitting for BMW Z3 E36:

Roadster:
- 2.0 150hp from 07/1998 to 10/2000 (engine code M52B20TU)
- 2.2i 170hp from 12/1999 to 06/2002 (engine code M54B22)
- 2.8 192hp from 07/1996 to 08/1998 (engine code M52B28 single vanos)
- 2.8 193hp from 01/1998 to 05/2000 (engine code M52B28TU)
- 3.0i 231cv from 09/1999 to 06/2002 (engine code M54B30)

Chopped off :
- 2.8 192hp from 05/1997 to 08/1998 (engine code M52B28 single vanos)
- 2.8 193hp from 01/1998 to 05/2000 (engine code M52B28TU)
- 3.0i 231cv from 09/1999 to 06/2002 (engine code M54B30)

The 2 banjo screws (M14X1.5X26) and the 4 seals (14X20) are not supplied with this vanos system oil hose.

Dual vanos unit oil supply hose 14mm fitting for BMW Z4 E85:

Roadster:
- 2.2i 170hp phase 1 from 12/2002 to 11/2005 (engine code M54B22)
- 2.5i 192hp phase 1 from 04/2002 to 11/2005 (engine code M54B25)
- 3.0i 231hp phase 1 from 04/2002 to 11/2005 (engine code M54B30)

The 2 banjo bolts (M14X1.5X26) and 4 gaskets (14X20) are not supplied with this vanos system oil hardness.

Vanos oil hose for Bmw 7 Series E38:

Bmw 7 Series E38 :

- 728i 6cyl 193hp from 10/1995 to 09/1998 (engine code m52b28)
- 728iL 6cyl 193hp from 10/1995 to 09/1998 (engine code m52b28)
- 728i 6cyl 193hp from 09/1998 to 07/2001 (engine code m52b28tu)
- 728iL 6cyl 193hp from 09/1998 to 07/2001 (engine code m52b28tu)

The 2 banjo bolts and 4 gaskets are not supplied with this vanos system oil hose.

For Saloon, Coupé & Cabriolet:
- M3 S50

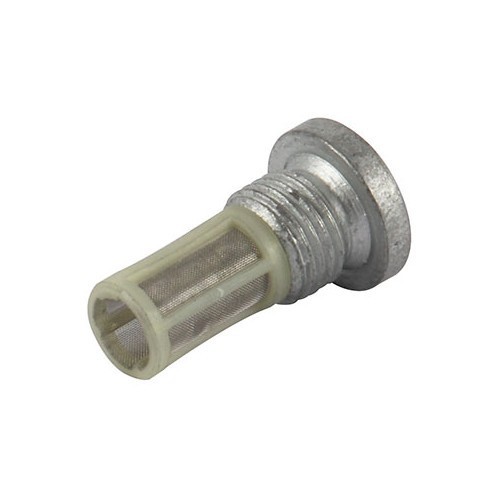

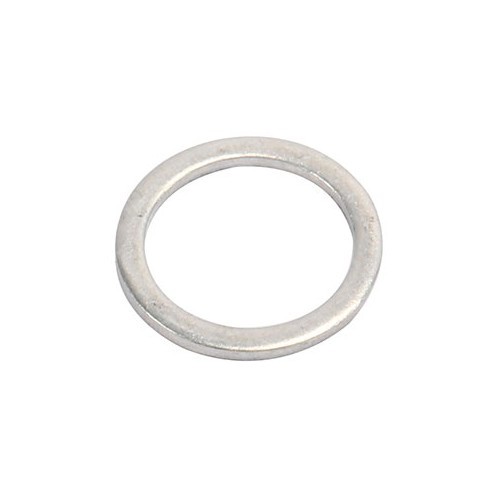

It is advisable to replace it when draining the engine in order to increase the VANOS service life

For Roadster & Coupe :
- Z3 M S50

It is advisable to replace it when draining the engine in order to increase the VANOS service life
