Brake disc

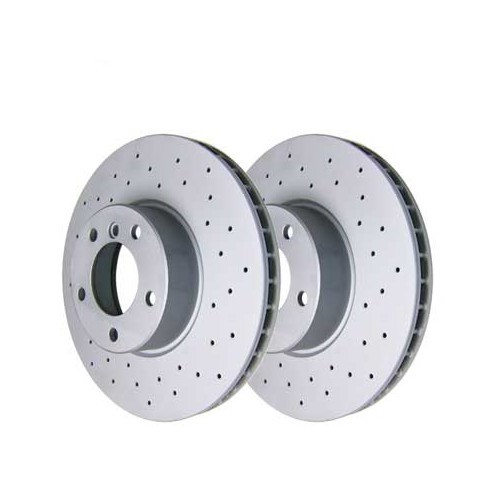

ZIMMERMANN drilled ventilated front brake discs diameter 324x30mm for BMW 5 series E39 Sedan and Touring :

Sedan :
- 530i 231hp phase 2 from 03/2000 to 07/2003 (engine code M54B30)
- 535i V8 245hp phase 1 from 04/2000 to 08/2000 (engine code M62B35TU)
- 535i V8 245hp phase 2 from 09/2000 to 06/2003 (engine code M62B35TU)
- 540i V8 4.4L 286hp phase 1 from 04/2000 to 08/2000 (engine code M62B44TU)
- 540i V8 4.4L 286hp phase 2 from 09/2000 to 06/2003 (engine code M62B44TU)
- 540iP V8 4.4L 286hp phase 1 from 04/2000 to 08/2000 (engine code M62B44TU)
- 540iP V8 4.4L 286hp phase 2 from 09/2000 to 05/2003 (engine code M62B44TU)
- 530d 193hp phase 2 from 09/2000 to 07/2003 (engine code M57D30)

Touring :
- 530i 231hp phase 1 from 11/1999 to 08/2000 (engine code M54B30)
- 530i 231hp phase 2 from 09/2000 to 12/2003 (engine code M54B30)
- 540i V8 4.4L 286hp phase 1 from 04/2000 to 08/2000 (engine code M62B44TU)
- 540i V8 4.4L 286hp phase 2 from 09/2000 to 12/2003 (engine code M62B44TU)
- 530d 193hp phase 2 from 09/2000 to 12/2003 (engine code M57D30)

ATTENTION: Not suitable for 530d up to 08/2000 nor for Sedan 535i up to 03/2000!

Features :
- Diameter: 324mm
- Thickness: 30mm
- Min. thickness: 28.4mm
- Centre distance: 5x120
- Bore: 79mm
- Unit weight: 10.4kg
- Type: ventilated
- Version: drilled

Drilled discs provide better cooling of the brakes while avoiding glazing of the pads, and offer excellent performance on wet surfaces.
The greatest advantage lies in the improved coefficient of friction, as the holes "nibble" at the pad material while cleaning them with each pass.
An excellent alternative to original discs.

Give your E39 the braking performance it deserves!

This product is sold in pairs.

For E36 Saloon:
-316 i and 318 i M40 /M43
- 318 tds

For E36 Touring:
- 316 i and 318 i
- 318 tds

For E36 Compact:
- 316 g / i 1.6 and 1.9
- 318 tds
-318 ti M42
- 318 ti M44 up to ->04/98

For E36 Coupé:
- 316i

For E36 Cabriolet:
- 318 i

This Zimmermann brake disc, ventilated and drilled, cast iron has a high carbon content and offers a quality comparable to the original part. During intensive use, a perforated disc may appear micros fis (creeks) or even get surer. The carbon and additives added to the cast iron help to combat this phenomenon. This disc is suitable for the following Porsche 997 GT3 :

-> Porsche 997 :
- 997 3.6 GT3 - 415 hp from 2007 to 2009
- 997 3.6 GT3 RS - 415 hp from 2007 to 2009

Right side mounting
Sold individually
Dimensions: 350 mm x 34 mm

Brake discs of ventilated front brake dotted grooved dimension 280 x 22 mm of brand BREMTECH for MINI III R57,R57LCI Cabriolet, R58 Coupe and R59 Roadster:

R57 Cabriolet:
- Cooper 1.6L 120hp from 10/2007 to 06/2010 (engine code N12B16)

R57LCI Convertible:
- Cooper 1.6L 122hp from 09/2009 to 06/2015 (engine code N16B16)
- Cooper SD 2.0L 143hp from 06/2009 to 05/2015 (engine code N47C20)
- Cooper D 1.6L 112hp from 05/2009 to 05/2015 (engine code N47C16)
- Cooper D 2.0L 112hp from 11/2010 to 05/2015 (engine code N47C20)
- One 1.6L 98hp from 09/2009 to 06/2015 (engine code N16B16)

R58 Coupe:
- Cooper 1.6L 122hp from 12/2010 to 04/2015 (engine code N16B16)
- Cooper SD 2.0L 143hp from 12/2010 to 05/2015 (engine code N47C20)

R59 Roadster:
- Cooper 1.6L 122hp from 01/2011 to 04/2015 (engine code N16B16)
- Cooper SD 2.0L 143hp from 01/2011 to 04/2015 (engine code N47C20)

ATTENTION: Not suitable for Cooper S or Cooper S JCW (different disc diameter)!

Suitable for both left and right side of front axle.

These BREMTECH grooved and pointed discs help evacuate lining dust and heat to ensure consistent pad wear and optimal braking while improving braking distances.

This product is sold in pairs.

Ventilated brake disc, left or right rear.Sold individually.
Dimensions: 256 x 22 mm, 5 x 100
Compatible with Seat Leon type 1M for rear brake code PR-1KY or 2EM.
Supplied without locking screw.

Front ventilated brake discsdotted grooved size 280 x 22 mm brand BREMTECH for MINI III R55, R55LCI Clubmanand R56 R56LCI Sedan:

R55 Clubman:
- Cooper 1.6L 120hp from 10/2006 to 07/2010 (engine code N12B16)
- Cooper d 1.6L 109hp from 11/2006 to 07/2010 (engine code W16D16)
- One 1.4L 95hp from 08/2008 to 02/2010 (engine code N12B14)

R55LCI Clubman :
- Cooper 1.6L 122hp from 03/2009 to 06/2014 (engine code N16B16)
- Cooper SD 2.0L 143hp from 05/2009 to 06/2014 (engine code N47C20)
- Cooper D 1.6L 112hp from 04/2009 to 06/2014 (engine code N47C16)
- Cooper D 2.0L 112hp from 11/2010 to 06/2014 (engine code N47C20)
- One 1.6L 98hp from 03/2009 to 06/2014 (engine code N16B16)
- One D 1.6L 90hp from 01/2010 to 06/2014 (engine code N47C16)

R56 Sedan:
- Cooper 1.6L 120hp from 10/2005 to 08/2010 (engine code N12B16)
- Cooper D 1.6L 109hp from 11/2005 to 07/2010 (engine code W16D16)
- One 1.4L 95hp from 12/2005 to 02/2010 (engine code N12B14)
- One D 1.6L 90hp from 06/2009 to 07/2010 (engine code W16D16)

R56LCI Sedan:
- Cooper 1.6L 122hp from 05/2009 to 11/2013 (engine code N16B16)
- Cooper SD 2.0L 143hp from 06/2009 to 11/2013 (engine code N47C20)
- Cooper D 1.6L 112hp from 05/2009 to 11/2013 (engine code N47C16)
- Cooper D 2.0L 112hp from 08/2010 to 11/2013 (engine code N47C20)
- One D 1.6L 90hp from 05/2009 to 11/2013 (engine code N47C16)
- One 55kW 1.4L 75hp from 07/2009 to 11/2013 (engine code N12B14)
- One Eco 1.6L 98hp from 09/2009 to 11/2013 (engine code N16B16)
- One Eco 55kW 1.6L 75hp from 11/2009 to 11/2013 (engine code N16B16)

PLEASE NOTE: Not suitable for Cooper S or Cooper S JCW (different disc diameter)!

Suitable for both left and right side of front axle.

These BREMTECH grooved and pointed discs help evacuate lining dust and heat to ensure consistent pad wear and optimal braking while improving braking distances.

This product is sold in pairs.

Pair of grooved discs for :
- MX5 NC and NCFL

Diameter: 280 mm

Original rear brakes kit for:
- 964 Carrera 2 from 06/1991
- 964 Carrera 4

This kit includes:
- 2 rear brake discs
- 1 set of pads
- 2 wear sensors
- 4 x 30 mm noise reduction shims
- 4 x 28 mm noise reduction shims
- 4 fixing screws

ATE Front brake disc for Porsche 944 Turbo and S2 :

- 944 phase 2 - 2.5 Turbo 220 hp (M44.50/M44.51) from 1987 to 1988 (HN and JN chassis)
- 944 phase 2 - 3.0 S2 - 211 hp (M44.41) from 1989 to 1991 without M030 Sport chassis

Not suitable for the Porsche 944 2.5 Turbo S/Cup M758 250 hp (M44.52) of 1988

Diameter : 298 mm
Thickness : 28 mm

Suitable for right and left sides

Sold individually

Front left brake disc for Porsche 911 type 991 Carrera 2 and 4 phase 1 from 2012 to 2016 :

- 991 Carrera - 3.4 350hp (A104) from 2012 to 2016
- 991 Carrera 4 - 3.4 350hp (A104) from 2013 to 2016

Not suitable for ceramic brakes. The PCCB option (ceramic brakes) can be seen in the service book under code 450.

Left or right side brake disc for rear axle
(hand brake shoes, 160 x 20 mm),

For E81 & E87 LCI:
- 118 d N47
- 120 d N47

For E87:
- 120 d M47N2

Washer for the screws to attach the brake calipers on the front spindles.
Sold individually, requires 2 for a caliper.
Don't forget to order the screws VH28210

For VW Beetle & derived models.

Left or right ventilated disc for front axle,

For Ibiza (6K0) since 09/96:
- For all models with brake code PR:1LY and 1ZK

For Ibiza (6K1):
- For all models with brake code PR:1ZE and 1ZK

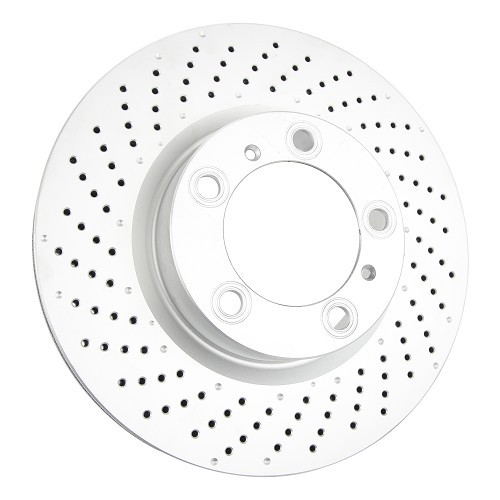

Rear brake disc, right, drilled and ventilated, for Porsche 911 type 997 :

- 997 phase 1 3.8 Carrera S and Carrera 4S from 2005 to 2008
- 997 phase 2 3.6 Carrera and Carrera 4 from 2009 to 2012
- 997 phase 2 3.8 Carrera S and Carrera 4S from 2009 to 2012

Right side mounting
Dimensions : 330 x 28 mm

Suitable for:
- Golf 2 GTi 1.8 16s 139hp (KR) from 89 ->
- Corrado 1.8 and 2.0 8s and 16s (KR, 9A, 2E, ADY)

Ventilated discs
Drilling: 4 x 100

Front brake disc, left or right for VW Transporter T5 from 2010 and from chassis n°7H-A-200001 or n°7J-A-200001.

Suitable for :
518i station wagon only
520i, 525i, 525Td
530i, 535i and 540i sedan and station wagon

Front brake disc for Renault 16

For Renault 16 :
- Renault 16, Super (R1150) from 08/1965 to 08/1970 - Cléon-alu 1470cm3 55hp (A1K)
- Renault 16 L (R1152) from 09/1970 to 08/1974 - Cléon-alu 1565cm3 67hp (A2L)
- Renault 16 L (R1152) from 09/1974 to 08/1975 - Cléon-alu 1565cm3 65hp (A2L)
- Renault 16 L (R1157) from 09/1975 to 12/1976 - Cléon-alu 1565cm3 55hp (A2L)
- Renault 16 TL (R1152) from 09/1970 to 08/1974 - Cléon-alu 1565cm3 67hp (A2L)
- Renault 16 TL (R1152) from 09/1974 to 08/1975 - Cléon-alu 1565cm3 65hp (A2L)
- Renault 16 TL (R1157) from 09/1975 to 12/1978 - Cléon-alu 1565cm3 55hp (A2L)
- Renault 16 TA (R1153) from 03/1969 to 12/1970 - Cléon-alu 1565cm3 67hp (A2L)
- Renault 16 TL Automatic (R1155) from 09/1974 to 12/1979 - Cléon-alu 1647cm3 66hp (A3M)
- Renault 16 TS (R1151) from 03/1968 to 12/1976 - Cléon-alu 1565cm3 85hp (A2L)
- Renault 16 TX (R1156) from 09/1973 to 12/1979 - Cléon-alu 1647cm3 93hp (A2M)
- Renault 16 TX Automatic (R1156) from 09/1973 to 12/1979 - Cléon-alu 1647cm3 90hp (A2M)

Front left or right brake disc
Sold individually
Original quality

For Golf 4 and Bora,
with braking reference code for front axle :
PR-1LE, 1LN, 1ZD, 1ZE, 1ZH

For New Beetle :
- 1.8 20v Turbo
-2.3 VR5

Check the Marker on the service booklet
Suitable for Golf 5 with brake codes: PR-1KZ, 1KY, 1KV
