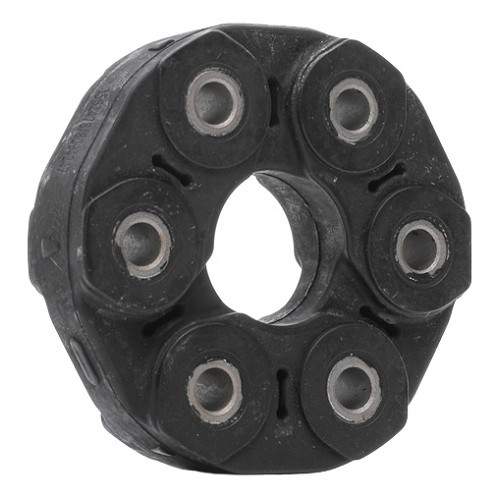

Transmission coupling

To be mounted in the rear position, between the drive shaft and the rear drive axle, MEYLE HD,

For E90 LCI & E91 LCI:
- 316 d N47 (E90 only)
- 316 d N47N
- 318 d N47 & N47N
- 320 d N47 & N47N (automatic transmission only)
- 320 xd N47 & N47N
- 325 xi N52N & N53
- 330 i N52N & N53
- 330 xi n53

For E92 LCI:
- 320 d N47N (automatic transmission only)
- 320 xd N47N
- 325 xi N52N & N53
- 330 i N52N & N53
- 330 xi N53

For E93 LCI:
- 320 d N47N (automatic transmission only)
- 330 i N52N & N53

Located between the gearbox output and the transmission shaft in the case of those in the "front" position, or between the transmission shaft and the rear axle for those in the "rear" position
Some models with a double flex disc have the same on the front and on the back,

For E81 & E87 LCI
- 120 d N47 with manual gearbox (front + rear position)
- 123 d N47S with automatic transmission (front position)

For E82 & E88:
- 120 d N47 with manual gearbox (front + rear position)
- 123 d N47S with auto gearbox (front + rear position)
- 135 i N55 (front position)
- M N54T (E82 M in front position only)

Located between the gearbox outlet and the drive shaft,

For E60 & E61:
- 525 d M57N
- 530 d M57N & M57N2
- 540 i N62N manual transmission (E60 only)
- 545 i N62 (manual transmission only from 09/05->)
- 550 i N62N manual transmission only

For E60 LCI & E61 LCI:
- 525 d M57N2
- 530 d M57N2
- 535 d M57N2
- 540 i N62N manual transmission (only for E60)
- 550 i N62N manual transmission only

For E34:
- M5 3.6and3.8 Saloon and Touring

For E36:
- M3 Saloon, Coupé and Cabriolet

For E46:
- M3 Cabriolet, Coupé and M3 CSL Coupé

For Roadster et Coupe :
- Z3 M S50 & S54

Located between the gearbox outlet and the drive shaft

For E60 & E61:
- 535 d M57N from 10/05
- 545 i N62 manual transmission from 03/05 to 09/05
- 545 i N62 automatic transmission from 04/05->

Located between the gearbox outlet and the drive shaft,

For E60 & E61:
- 520 d M47N2
- 520 i M54 (E60 only)
- 523 i N52
- 525 i M54 & N52
- 530 i M54 & N52

For E60 LCI & E61 LCI:
- 520 d M47N2
- 520 d N47 (E60 only)
- 520 i N46N automatic transmission (E60 only)
- 520 i N43 automatic transmission
- 523 i N52N & N53
- 525 i N52N & N53
- 530 i N52N & N53

Located between the gearbox output and the transmission shaft,

For Roadster (E85) with manual transmission only:
- 2.2 i M54
- 2.5 i M54

For E21 with manual gearbox up to 09/80
- 316M10
- 318 M10
- 318i M10
- 320 M10 up to 07/79
- 320i M10
-320M20
- 323i M20

For E21 with automatic gearbox:
- 318 M10 (Important: 2 possible assemblies, the other with 6 holes, 110 mm)
- 320M10 (Important: 2 possible assemblies, the other with 6 holes, 110mm)

For E12 with manual gearbox up to 09/80
- 518 M10
- 520 & 520i M10
- 520 & 520i M20

RIdex transmission selector for Bmw 3 Series :
Bmw 3 Series E30 Sedan:
- 316 1.8L 90hp phase 1 from 03/1983 to 08/1987 (engine code M10B18)- 316 1.8L 90hp phase 2 from 09/1987 to 07/1988 (engine code M10B18)- 316i 102hp phase 2 from 07/1987 to 12/1990 (engine code M40B16)- 318i 105hp phase 1 from 02/1983 to 08/1987 (engine code M10B18i)- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)- 320i 6cyl 125hp phase 1 from 01/1983 to 08/1985 (engine code M20B20)- 320i 6cyl 129hp phase 1 from 09/1985 to 08/1987 (engine code M20B20)- 320i 6cyl 129hp phase 2 from 09/1987 to 02/1991 (engine code M20B20)- 323i 6cyl 139hp phase 1 from 01/1983 to 08/1984 (engine code M20B23)- 323i 6cyl 150hp phase 1 from 09/1984 to 09/1986 (engine code M20B23)- 325e 6cyl 2.7L 122hp phase 1 from 01/1985 to 02/1986 (engine code M20B27) --> manual gearbox only- 325e 6cyl 2.7L 122hp phase 1 from 12/1986 to 08/1987 (engine code M20B27) --> automatic gearbox only- 325i 6cyl 170hp phase 1 from 03/1985 to 08/1987 (engine code M20B25) --> manual gearbox only- 325i 6cyl 170hp phase 1 from 12/1986 to 08/1987 (engine code M20B25) --> automatic gearbox only- 325i 6cyl 170hp phase 2 from 09/1987 to 01/1991 (engine code M20B25) --> automatic gearbox only- 325ix 6cyl 170hp phase 1 from 11/1985 to 08/1987 (engine code M20B25)- 325ix 6cyl 170hp phase 2 from 09/1987 to 12/1990 (engine code M20B25)- 324d 6cyl 86hp phase 1 from 04/1985 to 08/1987 (engine code M21D24)- 324d 6cyl 86hp phase 2 from 09/1987 to 12/1990 (engine code M21D24)- 324td 6cyl 115cv phase 2 from 02/1987 to 12/1990 (engine code M21D24) --> automatic gearbox only
Bmw 3 Series E30 Coupé:
- 316 1.8L 90hp phase 1 from 03/1982 to 08/1987 (engine code M10B18)- 316 1.8L 90hp phase 2 from 09/1987 to 07/1988 (engine code M10B18)- 316i 102hp phase 2 from 09/1987 to 04/1991 (engine code M40B16)- 318i 105hp phase 1 from 03/1982 to 08/1987 (engine code M10B18i)- 318i 115hp phase 2 from 09/1987 to 04/1991 (engine code M40B18i)- 318is 136hp phase 2 from 02/1989 to 05/1991 (engine code M42B18) --> manual gearboxes only- 320i 6cyl 125hp phase 1 from 01/1982 to 08/1985 (engine code M20B20)- 320i 6cyl 129hp phase 1 from 09/1985 to 08/1987 (engine code M20B20)- 320i 6cyl 129hp phase 2 from 09/1987 to 04/1991 (engine code M20B20)- 323i 6cyl 139hp phase 1 from 12/1981 to 08/1984 (engine code M20B23)- 323i 6cyl 150hp phase 1 from 09/1984 to 09/1986 (engine code M20B23)- 325e 6cyl 2.7L 122hp phase 1 from 01/1985 to 02/1986 (engine code M20B27) --> manual gearbox only- 325e 6cyl 2.7L 122hp phase 1 from 12/1986 to 09/1987 (engine code M20B27) --> automatic gearbox only- 325i 6cyl 170hp phase 1 from 03/1985 to 08/1987 (engine code M20B25) --> manual gearbox only- 325i 6cyl 170hp phase 1 from 12/1986 to 08/1987 (engine code M20B25) --> automatic gearbox only- 325i 6cyl 170hp phase 2 from 09/1987 to 02/1991 (engine code M20B25) --> automatic gearbox only- 325ix 6cyl 170hp phase 1 from 02/1985 to 08/1987 (engine code M20B25)- 325ix 6cyl 170hp phase 2 from 09/1987 to 02/1991 (engine code M20B25)
Bmw 3 Series E30 Touring:
- 316i 102hp from 06/1991 to 02/1994 (engine code M40B16)- 318i 115hp from 02/1989 to 02/1994 (engine code M40B18)- 320i 6cyl 129hp from 01/1988 to 04/1991 (engine code M20B20)- 325i 6cyl 170hp from 07/1987 to 04/1993 (engine code M20B25)- 325ix cat. 6cyl 170hp from 01/1988 to 12/1992 (engine code M20B25)- 324td 6cyl 115hp from 01/1988 to 05/1993 (engine code M21D24) --> automatic gearbox only
Bmw 3 Series E30 Cabriolet :
- 318i 115hp from 07/1990 to 04/1993 (engine code M40B18)- 320i 6cyl 129hp from 04/1986 to 09/1990 (engine code M20B20)- 320i 6cyl 129hp from 10/1990 to 01/1993 (engine code M20B20)- 325i 6cyl 170hp from 07/1985 to 09/1990 (engine code M20B25) --> manual gearbox only- 325i 6cyl 170hp from 12/1986 to 09/1990 (engine code M20B25) --> automatic gearbox only- 325i 6cyl 170hp from 10/1990 to 01/1993 (engine code M20B25)

E39 :
- 520 D, 525 D manual box
- 530 D manual box 01/99->

6-hole 110mm diameter transmission selector for BMW 3 Series E46 Sedan, Touring, Compact, Coupé and Cabriolet with manual gearbox :

- 316i 105hp phase 1 from 06/1998 to 03/2002 (engine code M43B19)
- 316i 115hp phase 2 from 05/2001 to 02/2004 (engine code N42B18)
- 316ti 115hp phase 1 from 01/2001 to 03/2003 (engine code N42B18)
- 316ti 115hp phase 2 from 04/2003 to 02/2004 (engine code N42B18)
- 318i 118hp phase 1 from 04/1997 to 09/2001 (engine code M43B19)
- 318ci 118hp phase 1 from 03/1999 to 08/2001 (engine code M43B19)
- 318ti 143hp phase 1 from 03/2001 to 03/2003 (engine code N42B20)
- 318ti 143hp phase 2 from 04/2003 to 02/2004 (engine code N42B20)
- 320i 150hp phase 1 from 07/1997 to 07/2001 (engine code M52B20TU)
- 320ci 150hp phase 1 from 11/1998 to 08/2001 (engine code M52B20TU)
- 320i 170hp phase 1 from 12/1999 to 08/2001 (engine code M54B22)
- 320ci 170hp phase 1 from 02/2000 to 03/2003 (engine code M54B22)
- 320i 170hp phase 2 from 09/2001 to 07/2005 (engine code M54B22)
- 320ci 170hp phase 2 from 04/2003 to 08/2006 (engine code M54B22)
- 323i 170hp phase 1 from 07/1997 to 10/2000 (engine code M52B25TU)
- 323ci 170hp phase 1 from 03/1998 to 09/2000 (engine code M52B25TU)
- 325i 192hp phase 1 from 01/2000 to 08/2001 (engine code M54B25)
- 325ci 192hp phase 1 from 01/2000 to 03/2003 (engine code M54B25)
- 325ti 192hp phase 1 from 01/2001 to 03/2003 (engine code M54B25)
- 325i 192hp phase 2 from 09/2001 to 07/2005 (engine code M54B25)
- 325ci 192hp phase 2 from 04/2003 to 08/2006 (engine code M54B25)
- 325ti 192hp phase 2 from 04/2003 to 12/2004 (engine code M54B25)

Transmission flex disc located between the gearbox and the front of the transmission shaft,

For Audi A3 (8P) Quattro:
- 1.9 TDi 105 hp (BKC, BLS)
- 2.0 TDi 136 hp (AZV)
- 2.0 TDi 140 hp (BMM, BKD)
- 2.0 TDi 170 hp (BMN)
- 2.0 FSi 150 hp (AXW, BLX, BLR, BMB, BLY, BVY, BVZ)
- 2.0 TFSi 200 hp (AXX)
