Wheel spacers

Set of steel shims for 2 5 x 205 mm rims, for 12 / 14 mm screws. Enlarged by: 10 mm

- Beetle ->07/1967
- Combi Split, ->07/1967
- Combi Bay Window, 08/1967 ->07/1970
- Kübel 181, 08/1969 ->12/1979

Paired of metal adapters for mounting 2 VW rims
with 5 x 205 mm holes on VW wheels with 4 x 130 mm centres
Widening per side: 9 mm
The adapters are fitted to the drums using the original bolts, while the wheels are attached to the adapters using 12 x 150 mm nuts (Ref: VL30605). Supplied without bolts and nuts.
Please note that mounting is possible on all drums, but for disc mounts, some calipers block the adapters!

For VW with 4-hole drums:
- Beetle,Karmann-Ghia, Buggy, since 08/1967->
- Type 3, Type 34, since 08/1965->

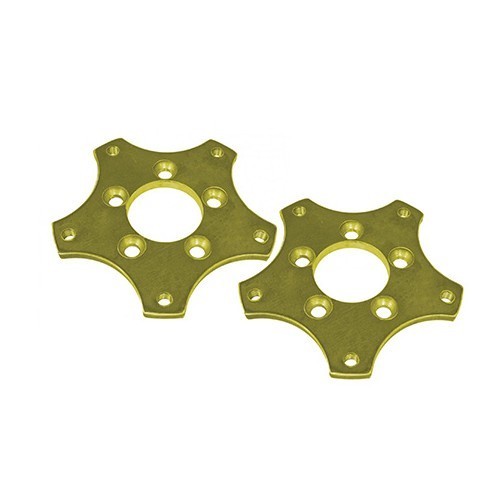

Pair of adapters for mounting 2 PORSCHE rims
with 5 x 130 mm hole on VW with 4 x 130 mm center distance
Lightweight model in solid aluminum
Widening per side: 25 mm
Supplied with 10 studs 14 x 150 mm (without nut), 2 of which are through-going.
The adapters are fitted to the discs and drums with 6 bolts Ref: VL40620 (to be ordered additionally), the wheels are secured to the adapter studs with Porsche-type nuts.

For VW with 4-hole discs and drums:
- Coccinelle, Karmann-Ghia, Buggy, since 08/1967->
- Type 3, Type 34, since 08/1965->

Pair of steel adapters for mounting 2 VW rims with 5 x 205 mm holes on T2/T3/T4 with 5 x 112 mm centers. Widening per side: 10 mm. Supplied without screws. Adapters are attached to discs and drums with original VW bolts or nuts, wheels are attached to adapters with original VW bolts or studs and nuts.

For vw :
- Combi Bay Window T2B (not for T2A) since 08/1971->
Chassis N° 212 2000 001->
- Transporter T25 / T3, 05/1979 ->07/1992

Pair of steel adaptors to fit 2 PORSCHE wheel rims, 5 x 130 mm drilling on T4with centre-to-centre distance of 5 x 112 mm. Enlargement: 25 mm.

For VW:
- Transporter T4, 09/1990 ->06/2003

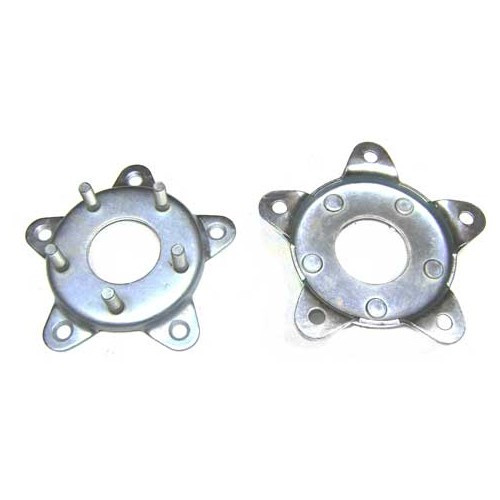

Pair of metal adapters for mounting 2 PORSCHE rims with 5 x 130 mm holes on VW rims with 5 x 205 mm centers.
Width per side: 27 mm
The adapters are fitted to the drums using the original bolts, while the wheels are attached to the adapters using Porsche-type nuts. Supplied without bolts and nuts.

For VOLKSWAGEN Combi Split Brazil (1957-1975)

Pair of aluminum adapters for mounting 2 PORSCHE rims with 5 x 130 mm holes on VW T2/T3 with 5 x 112 mm centers. Widening per side: 25 mm. Supplied without screws. The adapters are attached to the discs and drums with the original bolts or nuts, the wheels are attached to the adapters with Porsche bolts or studs and nuts.

For :
- Bay Window Combi since 08/1970 from chassis no. 2112000001.
- Transporter T25 / T3 from 05/1979 to 07/1992

Pair of metal adapters for mounting 2 PORSCHE rims with 5 x 130 mm holes on VW rims with 5 x 205 mm centers.
Width per side: 27 mm
The adapters are fitted to the drums using the original bolts, while the wheels are attached to the adapters using Porsche-type nuts. Supplied without bolts and nuts.

For VW with 5-hole drums:
- Beetle, Karmann-Ghia, Buggy up to 07/1967
- Combi Split

Pair of steel adaptors to fit 2 VW wheel rims, 5 x 205 mm drilling on T2/T3/T4 with centre-to-centre distance of 5 x 112 mm. Enlargement: 10 mm. Supplied without screws. The adaptors are mounted on discs and drumswith the originalnuts and bolts, the wheels are fixed onto the adaptors byVW bolts or studs and nuts.

For VW:
- Transporter T4, 09/1990 ->06/2003

Pair of metal adapters for mounting 2 VW rims
with 4 x 130 mm hole on VW with 5 x 205 mm center distance
Width per side: 27 mm
The adapters are mounted on the drums using the original bolts, while the wheels are attached to the adapters using specific nuts Ref: VL30912. Supplied without bolts and nuts.

For VW with 5-hole drums:
- Beetle, Karmann-Ghia, Buggy, until ->07/1967
- Combi Split

Pair of metal adapters for mounting 2 VW rims
with 4 x 130 mm hole on VW with 5 x 205 mm center distance
Width per side: 27 mm
The adapters are mounted on the drums using the original bolts, while the wheels are attached to the adapters using specific nuts Ref: VL30912. Supplied without bolts and nuts.

For VOLKSWAGEN Combi Split Brazil (1957-1975)

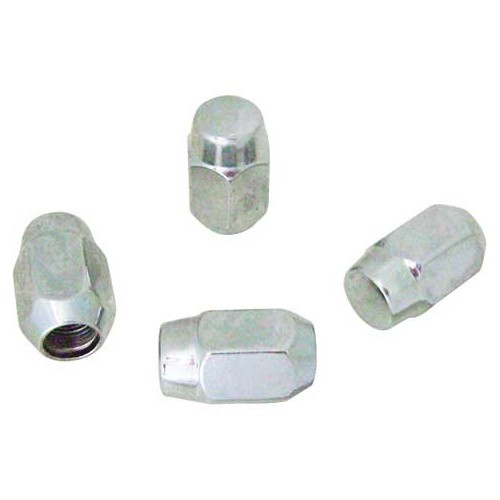

Specific nuts and bolts for adaptors part ref. VL30910
M12 x 125 thread

Specific nuts and bolts for adaptors part ref. KZ60064
M12 x 125 thread
