Gearbox control pieces

Two guide bushings on the nose of the gearbox
Guides the radial arm control, comes with the 24 x 7 mm seal.

for Transporter T25/T3, 05/1979 ->12/1982
with 4-speed gearbox, types: DH, DS, DZ, 2D.

Gear selector lever on gearbox linkage

for Transporter T25/T3, models 83 ->91
since chassis no. 24-D-000 001->

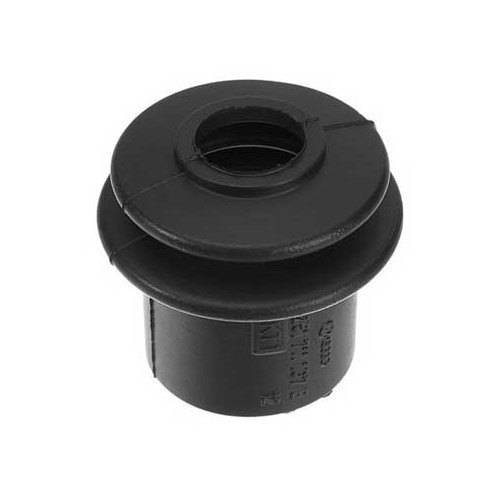

Bellows under gear selector lever

for Transporter T25/T3 models 08/83 ->91
since chassis no. 24-D-000 001->

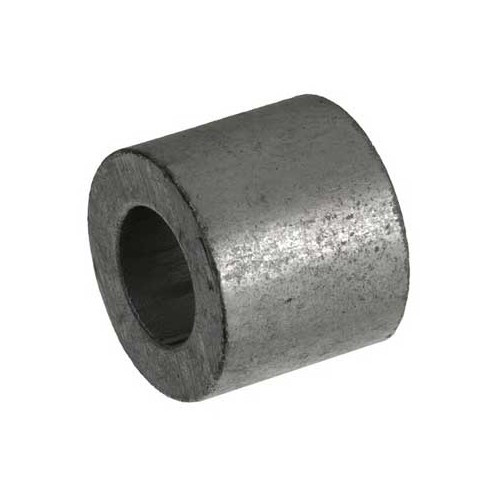

Gear linkage bearing bushing

for Transporter T25/ T3 all models 82 ->92
2 parts required, 1 front & 1 rear, sold per unit:
- before 08/82 ->92 all since chassis no. 24-D-000 001->
- Rear 08/82 ->87 chassis no. 24-D-000 001 ->25-H-113 601

SPI seal on gearbox control
Dimensions: 15 x 24 x 7 mm

for Transporter T25/T3, 05/1979 ->12/1982
with gearbox type: DH, DS, DZ, 2D.

Front part of 5-speed gearbox control linkage.
Shift rail under the gear lever. Original VW quality.

For Transporter T25/T3, 08/1982 ->07/1992:
Petrol, Diesel engines & Turbo-Diesel, 5-speed gearboxes
since chassis no. 24-D-000 001->
Except for Syncro version (4 x 4).

Rear part of gearbox control linkage.
Shift rail before gearbox nose. Original VW quality.

For Transporter T25/T3, 08/1982 ->07/1992:
Petrol engines since chassis no. 24-D-000 001->

Central cross-piece on manual gearbox control linkage.
Reproduction by Original Volkswagen Classic Parts.

For Transporter T25/T3, 08/1982 ->07/1992:
Petrol, Diesel engines & Turbo-Diesel
since chassis no. 24-D-000 001->
All models including Syncro version (4 x 4).

Front spacer bush on gear control for automatic gearbox. 2 parts required, sold by unit.
Original Volkswagen Classic Parts.

For Transporter T25 / T3, 05/1979 ->07/1992
with automatic gearbox.

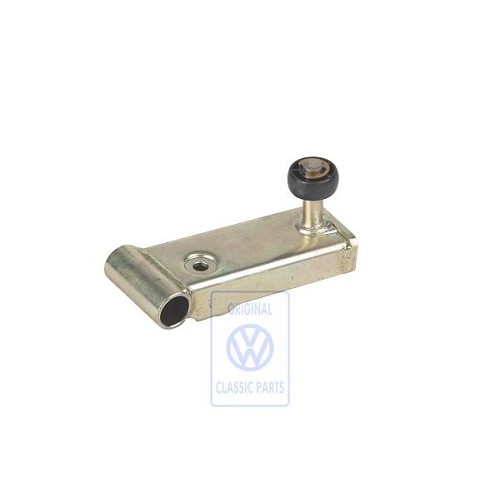

Linkage bearing support under gear lever.
Original Volkswagen Classic Parts.

For VW LT, 12/1982 ->12/1995

Tightening shaft on gear linkage.
Dimensions: 6 x 32 mm
Original Volkswagen Classic Parts.

For VW Transporter T25 / T3, 08/1982 ->07/1992
from chassis no. 24-D-000 001->

Bellows under gear selector lever for VW Transporter T25 / T3 from 08/83 to 1991 since chassis No. 24-D000001

Origin VOLKSWAGEN CLASSIC PARTS.

Capuchon de protection en caoutchouc sur tringlerie de levier de vitesses ou axe de fourchette pour VOLKSWAGEN LT de 1976 à 1996

Rear gear linkage bearing bushing

For Transporter T25/T3 models 08/87 ->92
since chassis no. 25-H-113 602->

Bellows on gear selection linkage
Approx. length: 70 mm
Inner diameter: 24 mm

for Transporter T25/T3, 05/1979 ->1985
Engines: 1.6 ->2.0

Cross-piece lever on gear selection linkage

For Transporter T25/T3 with Petrol engine, 08/82 -> 07/92
from chassis no. 24-D-000 001 ->

Cross-piece lever on gear selection linkage
Original VW quality.

For Transporter T25/T3 Diesel & Turbo-D, 08/82 ->07/92
since chassis no. 24-D-000 001->

Suitable for manual 5-speed gearbox
Original VW quality.

For Transporter T25/T3, 08/82 ->07/92

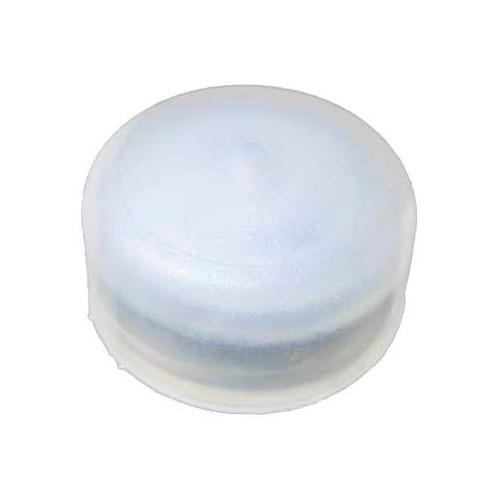

Single plastic ball joint for connection on metal gear selection lever (not supplied).

For VW Transporter T25/T3
Years: 05/1979 -> 07/1992
All models.

Suitable for manual 5-speed gearbox

For Transporter T25/T3, 08/82 ->07/92
