Disc brake conversion kit

Kit for mounting original disc brakes on front stub-axles of Beetles 1302 and 1303 equipped with stub-axles for disc brakes.

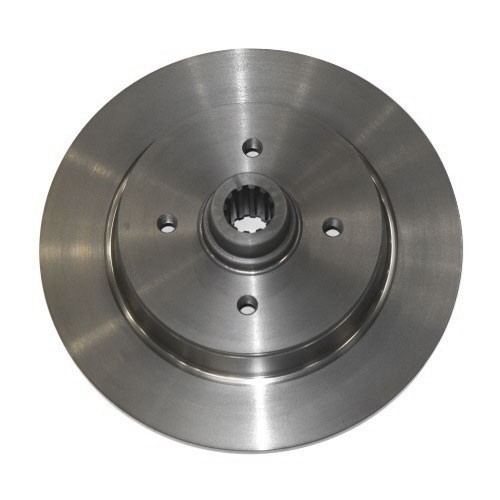

Grooved solid rear brake disc
German quality KERSCHER
VW Drilling: 4 x 130 mm

For Beetles & Karmann Ghia Type 14:
->rear axle with long flared tubes 08/1966->
->rear axle with universal joints 08/1968->
(for universal joints, also fit ring VH28414).

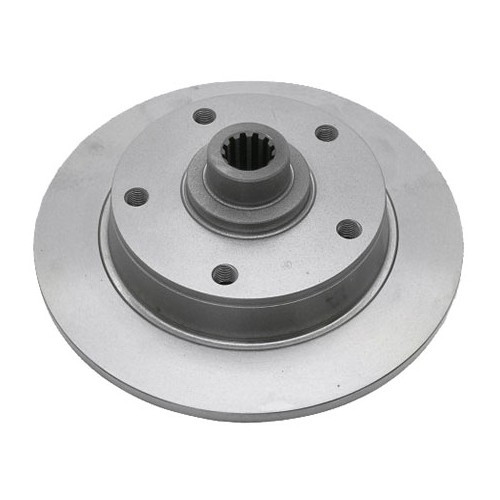

Grooved solid rear brake disc
German quality
Golf Drilling: 5 x 100 mm

For Beetles & Karmann Ghia Type 14:
->rear axle with long flared tubes 08/1966->
->rear axle with universal joints 08/1968->
(for universal joints, also fit ring VH28414).

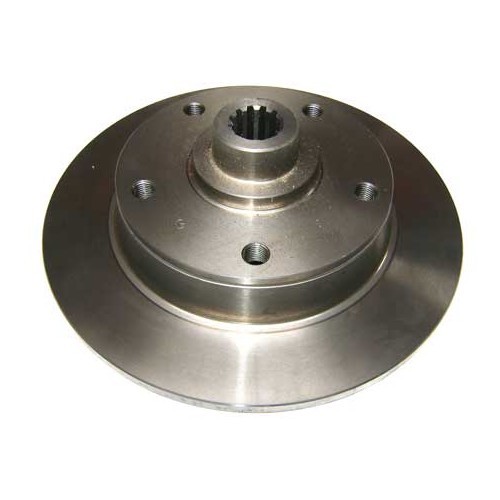

Grooved solid rear brake disc
German quality KERSCHER
Porsche Drilling: 5 x 130 mm

For Beetles & Karmann Ghia Type 14:
->rear axle with long flared tubes 08/1966->
->rear axle with universal joints 08/1968->
(for universal joints, also fit ring VH28414).

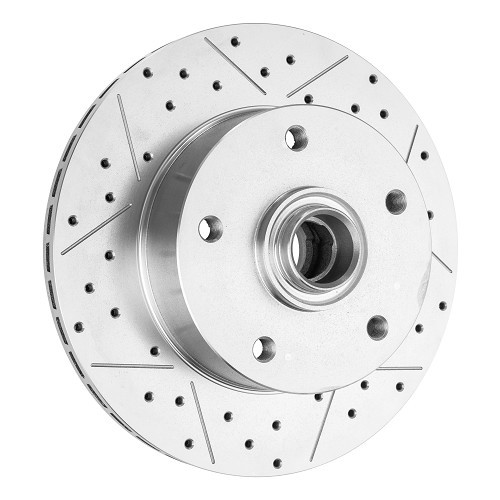

Grooved and ventilated front brake disc
German quality, for KERSCHER VH30220 kit
Porsche bore: 5 x 130 mm
Diameter 278 mm, thickness: 20 mm

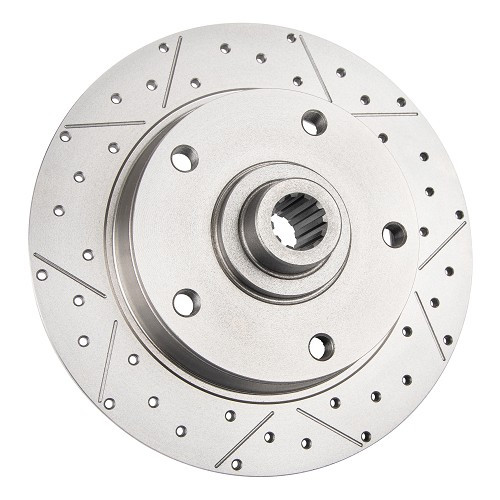

Grooved and ventilated rear brake disc
German quality, for KERSCHER VH40202 kit
Porsche bore: 5 x 130 mm
Diameter 262 mm, thickness: 9 mm

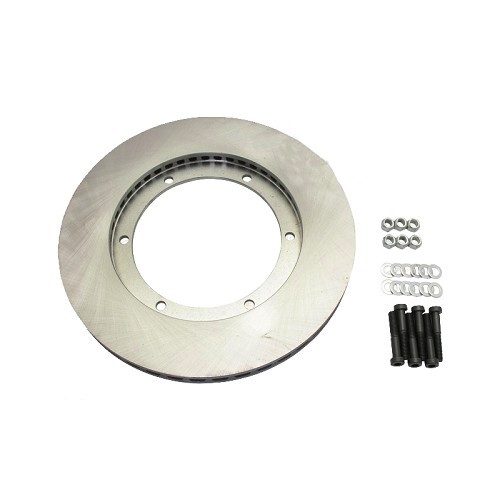

Vented front brake disc
German quality
Perforation: 5 x 205

For all kitof CSP disc brakesin 15"

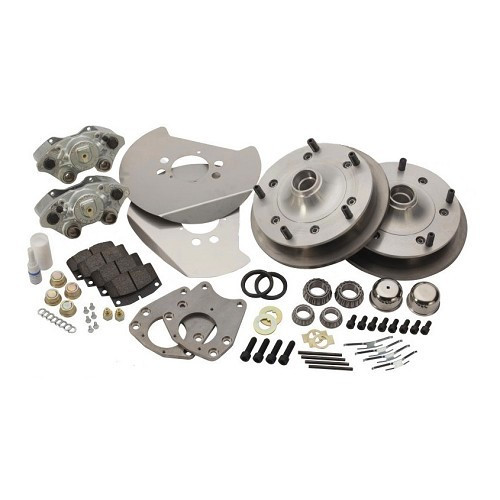

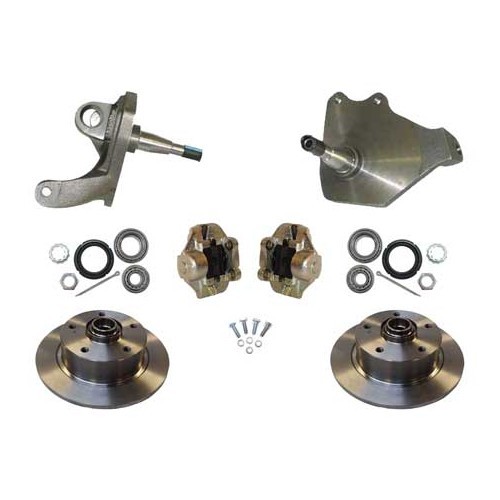

Complete kit: 2 discs, PORSCHE 5 x 130 mm drilling, 2 offset type stub-axles -6 cm, 2 callipers with brake pads, mounting screws and bearings.

For Beetle & Karmann-Ghia T14, from 06/1968->
From chassis no. 118 857 240->
with axle with ball joints (except 1302 - 1303).

Not type approved for road usage, for use on private track only.

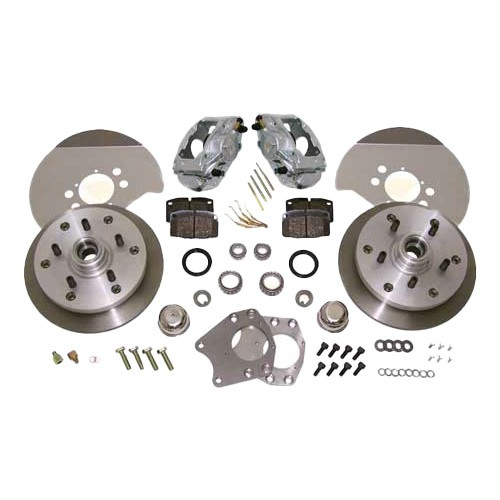

Complete front disc brake kit with:

superior quality PORSCHE drilling
- 2 German quality discs 5 x 130 cm ( -6 cm)
- 2 sets of German quality bearings, 5 x 130 mm
- 2 original callipers supplied with brake pads
- All mounting fixtures

for Beetle 1200, 1300, 1500 & Karmann-Ghia Type 14
with front axle with ball joints from 08/1965->
From chassis no. 116 000 001->
(not type-approved).
For steering ball joints with large cones.

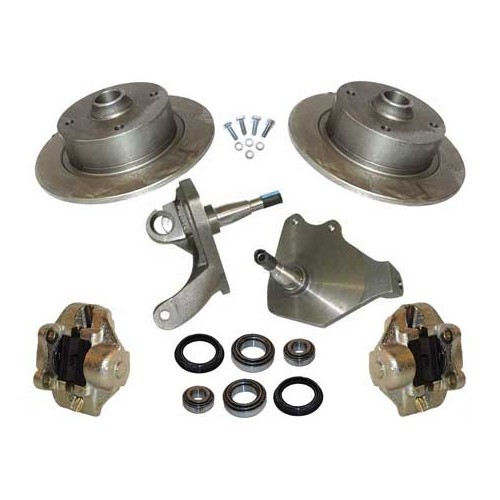

Complete front brake kit consisting of :
- 2 discs, 4 x 100 mm drilling (Golf) German quality
- 2 offset stub-axles -6 cm (635 mm)
- 2 callipers with brake pads
- German quality bearings
- mounting screws

for Beetle 1200,1300, 1500, from 08/1967->
with front axle with ball joints (except 1302 & 1303).

Complete front disc brake kit with:
superior quality GOLF drilling:
- 2 German quality discs 4 x 100 mm
-2 CB Perf. USA offset stub-axles (- 6 cm)
- 2 sets of German quality bearings
- 2 callipers supplied with brake pads
- All mounting fixtures

for Beetle 1200, 1300, 1500 & Karmann-Ghia Type 14
with front axle with ball joints from 08/1965->
From chassis no. 116 000 001->
(not type-approved).
For steering ball joints with large cones
2 x VH273001 1 x VJ5131611 1x VJ513182
(not supplied).

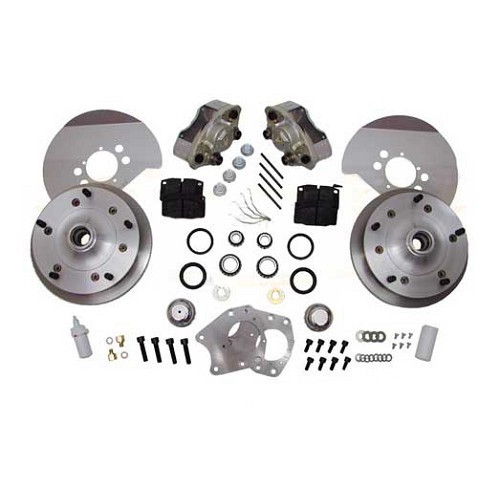

CSP solid front brake disc kit282 x 9 mm
drilling 5 x 205 mm for front axle with spindles.
The BEST for high-performance braking on your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nutsandbolts and spacers, you need KL30500 or KL30600 nuts and VH29000ACC spacers.

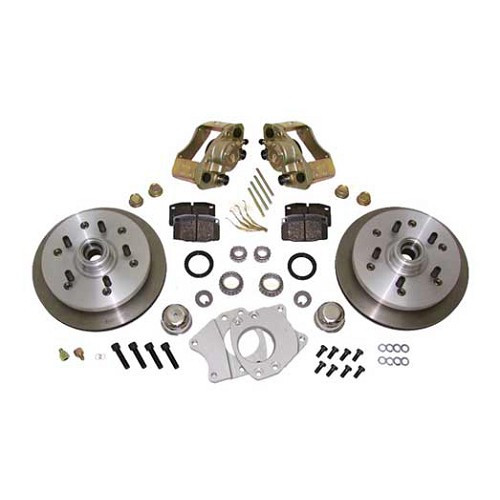

CSP solid front brake disc kit, 282 x 9 mm
drilling 5 x 205 mm for front axle with spindles
designed for CB Performance offset stub-axles (not supplied).
The BEST for high-performance brakingon your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

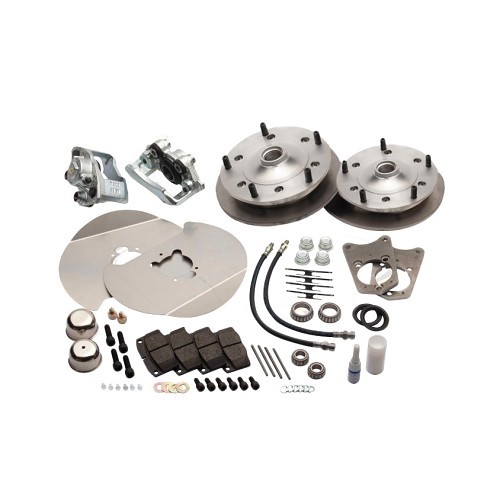

CSP solid front brake disc kit,282 x 9 mm
PORSCHE drilling 5 x 130 mm for front axle with spindles.
The BEST for high-performance braking on your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

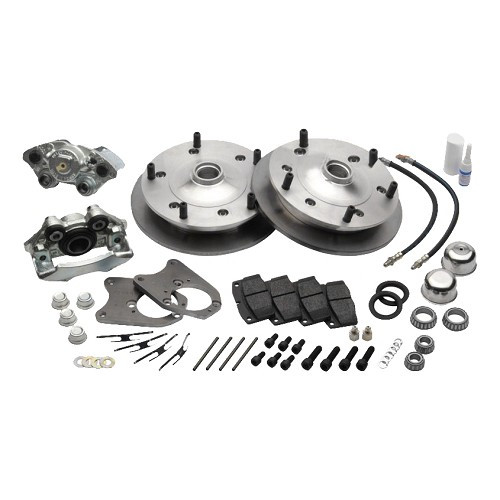

CSP solid front brake disc kit, 282 x 9 mm, PORSCHE drilling 5 x 130 mm, for front axle with genuine spindles.
The BEST for high-performance braking on your classic car!

For VW Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

CSP ventilated front brake disc kit, 280 x 21 mm
PORSCHE drilling 5 x 130 mm for front axle with spindles.

The BEST for high-performance braking on yourclassic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

CSP front brake kit with solid discs 282 x 9 mm
5 x 205 mm hole for front axle with ball joints (small cones). Fits on original drum stub axles, will not fit on offset stub axles.
TOP braking performance for your VW!

For VW Beetle

For Beetle and Karmann Ghia Type 14 up to 1967
To switch from 5 x 205 drums to 5 x 205 discs

CSP solid front brake disc kit, 282 x 9mm
drilling, 5 x 205 mm, forfront axle with spindles (large cones).
The BEST for high-performance braking on your VW!

For Beetle & Karmann-Ghia T14, /06/1968 ->

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

CSP solid front brake disc kit, 282 x 9 mm
drilling5 x 205 mm for front axle with ball joints (large cones)
designed for CB Performance offset stub-axles (not supplied).
The BEST for high-performance braking on your VW!

For Beetle & Karmann-Ghia T14, from ->08/1965
From chassis No. 116 000 001 (except 1302- 1303)

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.
