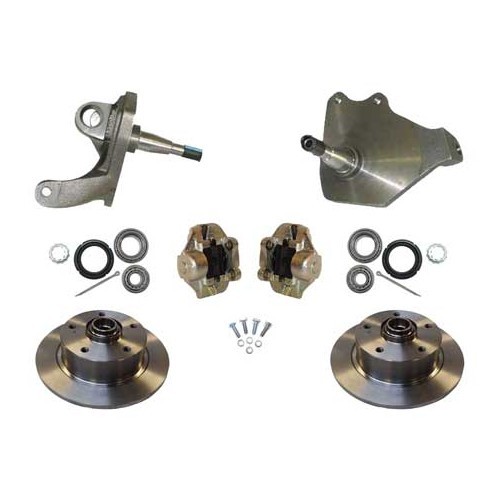

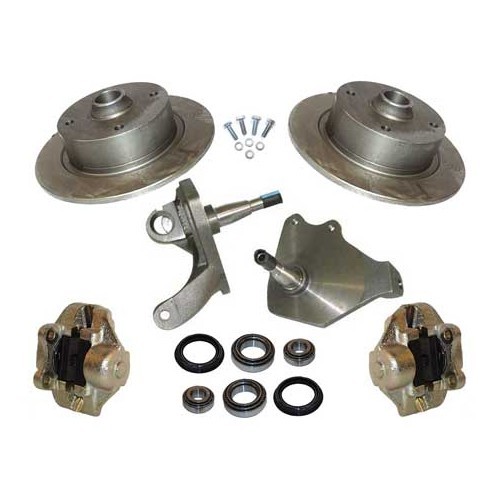

Disc brake conversion kit

Complete front disc brake kit with:
superior quality GOLF drilling:
- 2 German quality discs 4 x 100 mm
-2 CB Perf. USA offset stub-axles (- 6 cm)
- 2 sets of German quality bearings
- 2 callipers supplied with brake pads
- All mounting fixtures

for Beetle 1200, 1300, 1500 & Karmann-Ghia Type 14
with front axle with ball joints from 08/1965->
From chassis no. 116 000 001->
(not type-approved).
For steering ball joints with large cones
2 x VH273001 1 x VJ5131611 1x VJ513182
(not supplied).

Conversion kit to ventilated front disc brakes
for longer-lasting, more efficient braking!
Made in Germany by CSP (not approved)
Suitable for :
- Combi Split 1964 ->1967
- Combi Bay Window 1968 ->1970
Fitted with PORSCHE wheels 5 x 130 mm 15 inches minimum
Screws: part numbers KL30500 or KL30600

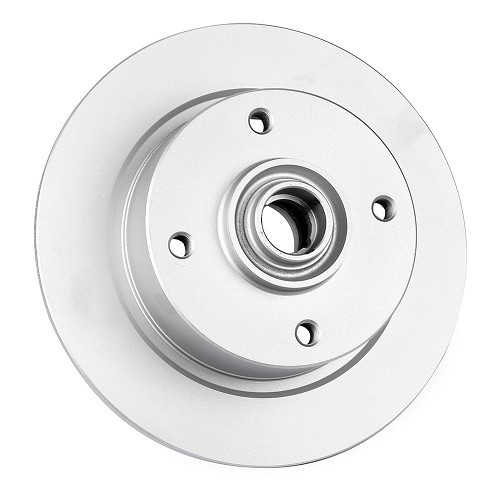

Original type solid front disc brake 280 mm
German Quality
Golf drilling: 4 x 100 mm
Diameter ofthe centring ring for Golf wheel rims

For Beetle & Karmann-Ghia from 08/1966->
From chassis no. 117 000 001->
+ 1302 / 1303, 08/1970 ->01/1980
From chassis N° 111 2000 001->
+ Type 3, 08/1965 ->03/1971
Chassis no. 316 000 001 ->311 2268 738.

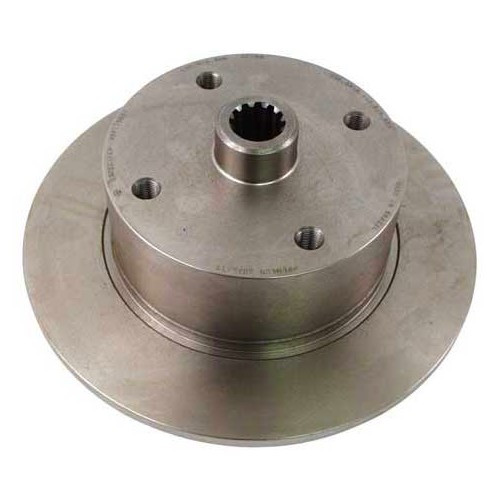

Grooved solid rear brake disc
German quality KERSCHER
VW Drilling: 4 x 130 mm

For Beetles & Karmann Ghia Type 14:
->rear axle with long flared tubes 08/1966->
->rear axle with universal joints 08/1968->
(for universal joints, also fit ring VH28414).

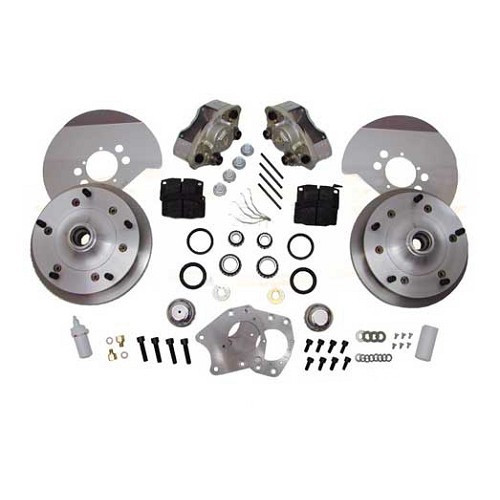

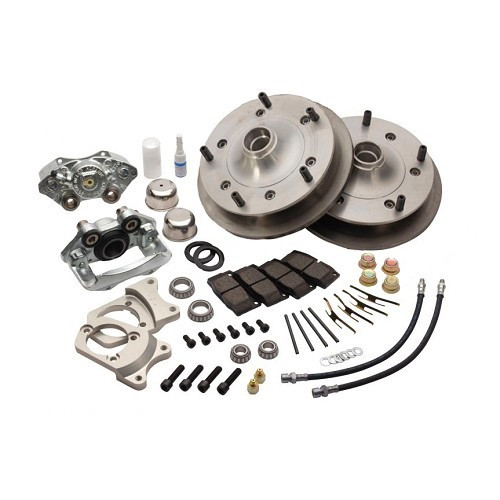

CSP solid front brake disc kit, 282 x 9 mm
drilling 5 x 205 mm for front axle with spindles
designed for CB Performance offset stub-axles (not supplied).
The BEST for high-performance brakingon your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

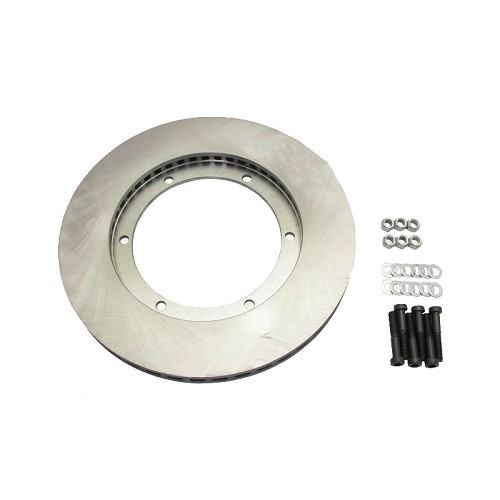

Vented front brake disc
German quality
Perforation: 5 x 205

For all kitof CSP disc brakesin 15"

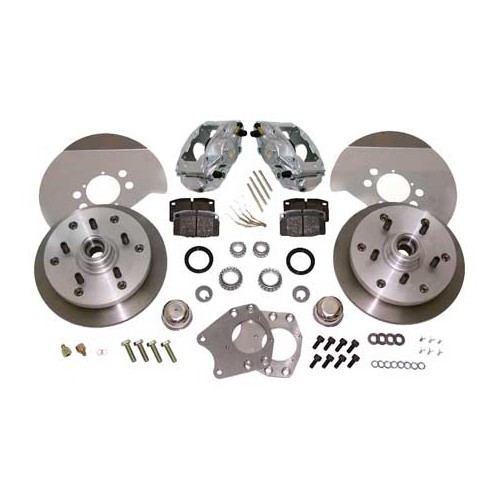

CSP front brake kit with solid discs 282 x 9 mm
5 x 205 mm hole for front axle with ball joints (small cones). Fits on original drum stub axles, will not fit on offset stub axles.
TOP braking performance for your VW!

For VW Beetle

Rear smooth disc kit
KERSCHER German quality
Solid discs 262 x 9 mm
Porsche 5 x 130 mm drilling
For Beetle:
- 1500 Automatic 08/1967 ->07/1972
- 1302 08/1970 ->07/1972
- 1303 08/1972 ->01/1980
versions with rear axle with universal joints.

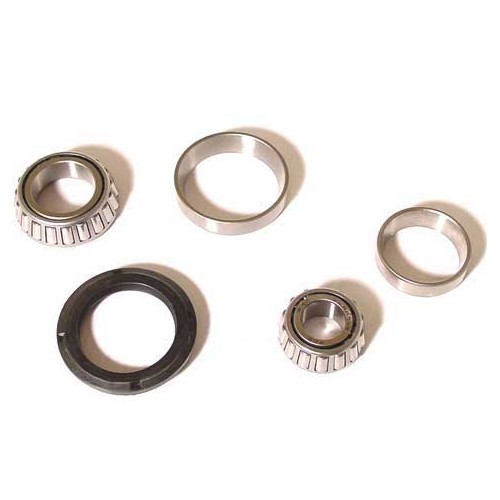

Bearing kit for CSP disc brake kit.
Set for one front wheel:
- 1 inner bearing
- 1 outer bearing
- 1 oil seal
1x left or right side, sold individually

For VW:
- Beetle & Karmann-Ghia Type 14,
Years: 08/1965 ->05/1968
Chassis No. 116 000 001 ->118 857 239.
- Type 3 & Karmann-Ghia Type 34 (internal 27 mm)
Years: 04/1961 ->02/1968
Chassis No. 000 001->318 189 212.

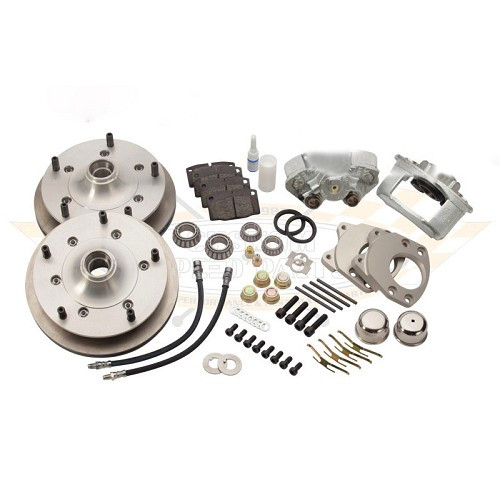

Very effective, these kits are designed forstronger braking than the original. It also has the advantage of replacingthe aluminium drums which have unfortunately become difficult to find.
Each kit consists of : 2 forged aluminium central disc hubs (digital precision machining), 2 discs and their bearings, 2 single-piston callipers(48 mm), 1 set of brake pads with their assembly kit, 2 brake hoses, 2 plates andmounting fixtures.

CSP solid front brake disc kit282 x 9 mm
drilling 5 x 205 mm for front axle with spindles.
The BEST for high-performance braking on your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nutsandbolts and spacers, you need KL30500 or KL30600 nuts and VH29000ACC spacers.

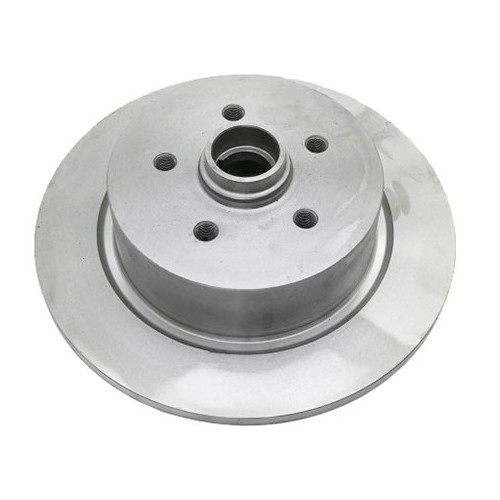

Original type solid front disc brake 280 mm.
German Quality Sebro brand
Golf drilling: 5 x 100 mm
Diameter of the centring ring for Golf wheel rims

For Beetle & Karmann-Ghia from 08/1966->
From chassis no. 117 000 001->
+ 1302/ 1303, 08/1970 ->01/1980
From chassis N° 111 2000 001->
+Type 3, 08/1965 ->03/1971
Chassis no. 316 000 001 ->311 2268 738.

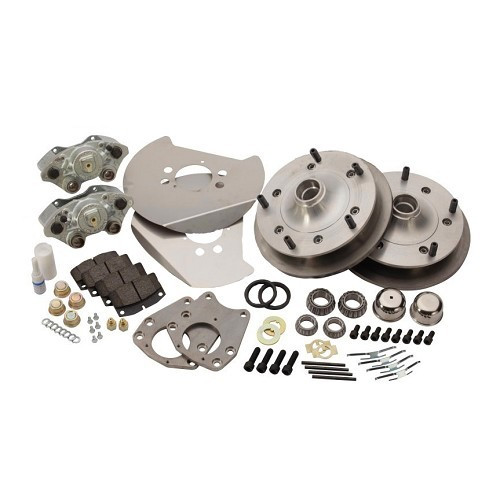

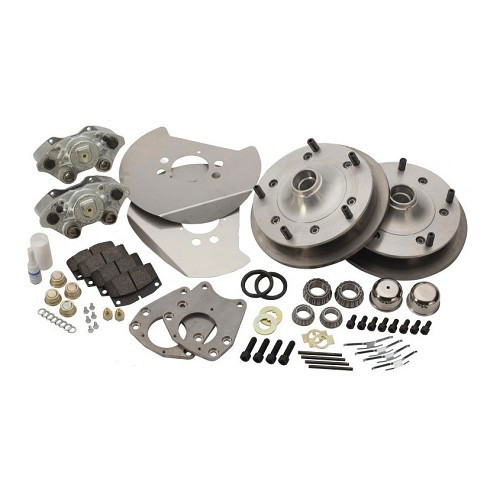

Conversion kit to ventilated front disc brakesfor longer-lasting, more efficient braking!CSP manufacturing quality
This CSP disc brake system is specially designed for all Volkswagen type 2 buses (Split and Baywindow) equipped with 15" aluminum rims or original 16" steel rims from before February 1955.
!!!This kit will interfere with 15" steel rims and newer 16" rims!!!!
Based on unmodified axle components, CSP ventilated disc brakes are mounted on the original stub axles by CNC-machined adapters. There is no need to modify the axles, allowing a return to the original drum brakes.
Screws and bolts: part numbers KL30500 or KL30600For :- Combi Split 1950 ->1967- Combi Bay Window 1968 ->1970Suitable for 15-inch wheels, center distance 5 x 205 mm.
Not approved for open roads.

Flat front brake disc original type 280 mm
Drilling: 4 x 130 mm

For Old Beetle & Karmann-Ghia since 08/1966->
+ 1302 / 1303, 08/1970 ->01/1980
from chassis no. 111 2000 001->
+ Type 3, 08/1965 ->03/1971
Chassis no. 316 000 001 ->311 2268 738.

Complete kit: 2 discs, PORSCHE 5 x 130 mm drilling, 2 offset type stub-axles -6 cm, 2 callipers with brake pads, mounting screws and bearings.

For Beetle & Karmann-Ghia T14, from 06/1968->
From chassis no. 118 857 240->
with axle with ball joints (except 1302 - 1303).

Not type approved for road usage, for use on private track only.

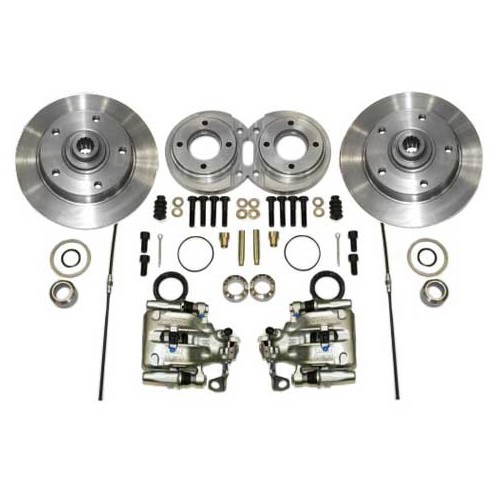

Rear disc brake kit
KERSCHER German quality
Solid discs 262 x 9 mm
drilling VW 4 x 130 mm
for Beetle with universal joints.

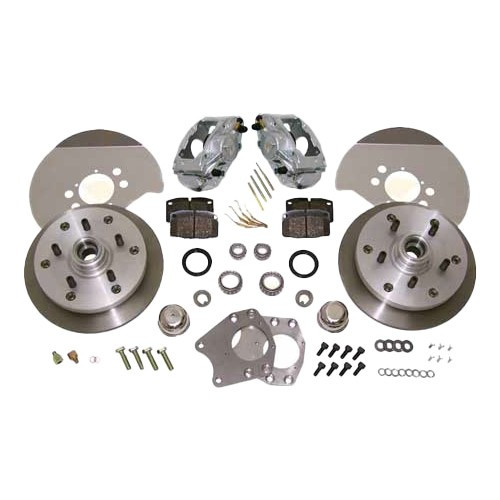

CSP solid front brake disc kit,282 x 9 mm
PORSCHE drilling 5 x 130 mm for front axle with spindles.
The BEST for high-performance braking on your classic car!

For Beetle & Karmann-Ghia T14, up to ->07/1965
up to chassis no. ->115 999 000.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.

This kit means you can keep your original 5 x 205 drilling and your original wheel rims.
Very effective, thiskit transforms your car's braking and provides you with the force and evenness of modern braking. It also has the advantage of replacing the aluminium drums which have unfortunately become difficult to find.

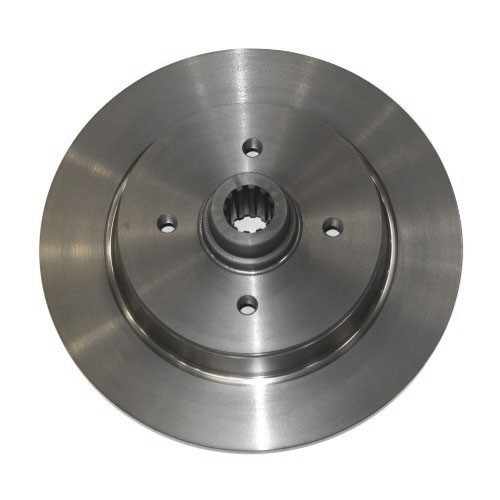

Grooved solid rear brake disc
German quality
Original drilling: VW: 4 x 130 mm
Replaces the VH28400K rear brake disc kit
Sold per unit.

For Beetles & Karmann Ghia Type 14:
->rear axle with long flared tubes 08/1966->
->rear axle with universal joints 08/1968->
(for universal joints, also fit ring VH28414).

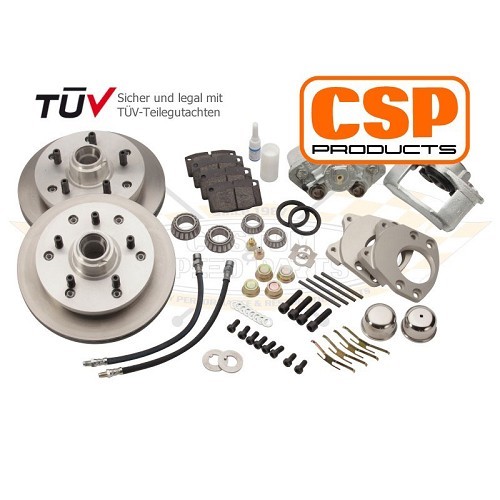

CSP ventilated front brake disc kit, 280 x 21 mm
drilling,5 x 205 mm, for front axle with ball joints (large cones).
The BEST forhigh-performance braking on your VW!

For Beetle & Karmann-Ghia T14,06/1968 ->
From chassis no. 118 857 240-> (except 1302 - 1303)
+ 181with 15" rims only.

TÜV approved in Germany (not approved in France)
Supplied without nuts and bolts, you need KL30500 or KL30600 nuts.
