Wheel cylinder

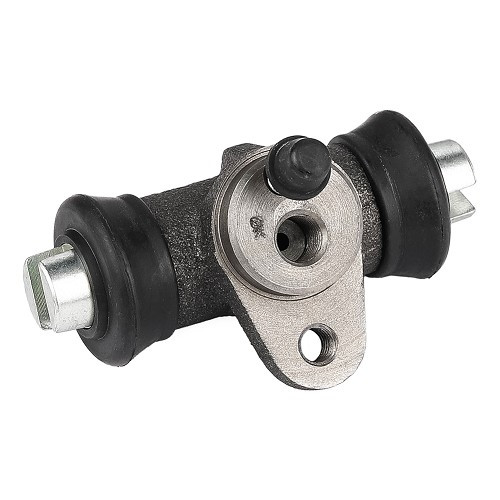

ATE brake cylinder for rear wheelPiston diameter (inside cylinder): 17.46 mm
For VW Cox 1300, 1500, 1302, 1303 since 08/1967For VW Cox 1200 since 12/1967For VW Karmann-Ghia type 14 since 08/1967For VW Kübel 181 cardan models since 03/1973

This BOSCH-BENDIX type rear wheel cylinder for Renault 4 (10/1976-12/1993) - 22.2 mm is true to the original.

This rear wheel cylinder for R4 type Bosch-Bendix is compatible with the following models:

R4 Sedans:
- R1128 (GTL/ CLAN) from 06/1978 to 12/1993
- R112C (SAVANE) from 09/1986 to 12/1993
- S128 (Administration)

R4 Vans:
- R2370 (F6) from 10/1976 to 12/1986
- R2430 (long glass) from 10/1976 to end of production
- R210B (F4)
- R239B (F4 Break)

This left front wheel cylinder type BENDIX for Renault 4 (07/1966-07/1982) - 23,8 mm is faithful to the original.

This rleft front brake receiver for R4 is compatible with all models with 200mm front drum brake.

In July 1966 the diameter of the brake drums increases from 180 to 200mm at the front, their width now being 35mm instead of the 30mm which increases the braking surface of the linings from 216 to 288 cm² per drum.

compatible models:

- R4 type R1120 : 07/1966 to 09/1971
- R4 super type R1122 : 07/1966 to 09/1962
- R4 type R1123 : 07/1966 to 05/1986
- R4 Export/L/TL type R1126 : 09/1971 to 07/1982
- R4 GTL type R1128 : 01/1978 to n° 390.2460

- R4 4HP van R2105 : 07/1966 to 09/1971
- R4 4HP van F4 type R2109 : 09/1971 to 07/1982
- R4 4HP glazed van F4 type R2392 : 09/1973 to 07/1982
- R4 5HP van type R2106 : 03/1966 to no 15.201
- R4 Van F4 type R2391 : 09/1972 to 05/1986
- R4 Van 4HP glazed F4 type R2392 : 09/1973 to 07/1982
- R4 Van raised type R2108 : 10/1972 to 07/1975
- R4 Van extended F6 type R2370 : 05/1975 to no 311.008
- R4 F6 Pick up type 3C2370 : 05/1975 to n° 311.008
- R4 Long glass van R2430 : 05/1975 to 07/1978
- R4 F4 type R210B : 09/1981 to n° 480
- R4 F4 station wagon type 239B : 09/1981 to n° 480

Attention!!! Your vehicle may have been modified or received a different factory fitment. Check your brake system for compatibility.

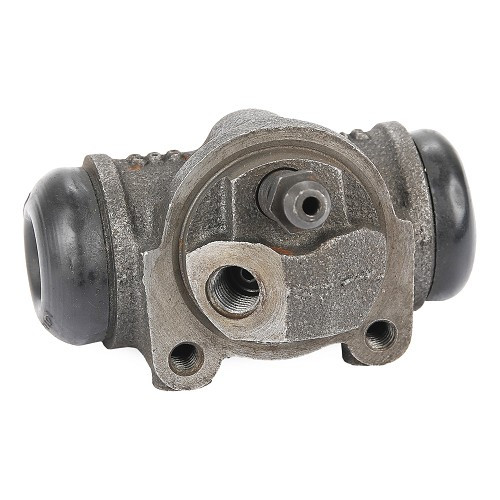

This LPR left rear wheel cylinder for Peugeot 504 (09/1968-12/1989) - 22mm is an excellent quality reproduction.
This left-hand rear wheel cylinder for Peugeot 504 is compatible with most models up to serial number 2058000. Please refer to the detailed technical specifications below.
It has also been fitted to 404 rear drums.

LPR22.2mm front wheel cylinder for Fiat 500 N, D, F, L and R (1957-1975)
Can be mounted on right or left side
Brake system: Bosch/Bendix
Hole spacing: 35mm
Sold individually
For models listed below:- Fiat 500 N from 1957 to 1960- Fiat 500 D from 1960 to 1965- Fiat 500 F from 1965 to 1968- Fiat 500 L from 1968 to 1972- Fiat 500 R from 1972 to 1975

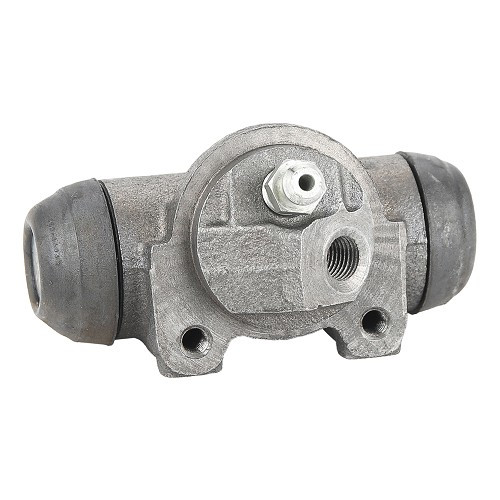

This LPR right rear wheel cylinder for Peugeot 404 (08/1966-10/1969) - Hydrovac is an excellent quality reproduction.
This right-hand rear wheel cylinder for Peugeot 404 with assisted braking is compatible with sedans that benefited from the Hydrovac-assisted Bendix braking system introduced on the 1966 model year. Please refer to the detailed technical specifications below.

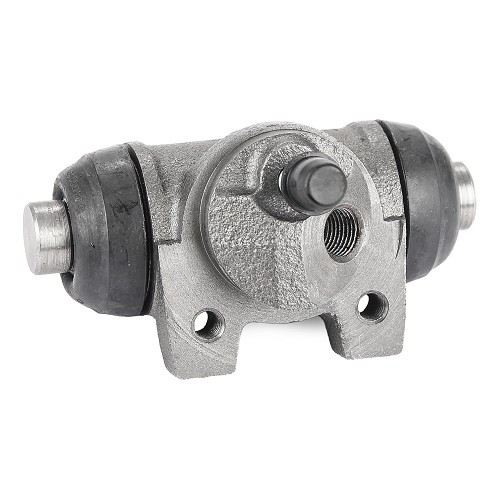

This SASIC left rear wheel cylinder for RENAULT with TRW system - 22mm - M10 is true to original.
The body of this left rear wheel cylinder for RENAULT is compatible with a large number of TRW/GIRLING production models from the 80s. Please refer to the technical specifications detailed below.
Compatible models:RENAULT SUPER 5: all TRW-mounted models from 01/1984 to 12/1996
RENAUT 9 with TRW/GIRLING mounting:- Renault 9 TL 09/1981 to 06/1985 Cléon-Fonte 1397cm3 60hp (C1J-)- Renault 9 TL 07/1985 to 06/1988 Cléon-Fonte 1397cm3 68hp (C2J-)- Renault 9 GTL 09/1981 to 06/1985 Cléon-Fonte 1397cm3 60hp (C1J-)- Renault 9 GTL 07/1985 to 06/1988 Cléon-Fonte 1397cm3 68hp (C2J-)- Renault 9 GTX 02/1984 to 06/1988 Cléon-Fonte 1721cm3 82hp (F2N-)- Renault 9 TXE 02/1984 to 06/1988 Cléon-Fonte 1721cm3 82hp (F2N-)- Renault 9 Turbo 03/1984 to 08/1986 Cléon-Fonte 1397 cm3 105hp (C1J)- Renault 9 Turbo 09/1986 to 06/1988 Cléon-Fonte 1397 cm3 115hp (C1J)- Renault 9 TD 12/1982 to 06/1988 1596cm3 55hp (F8M-)- Renault 9 GTD 12/1982 to 06/1988 1596cm3 55hp (F8M-)
RENAUT 11 with TRW/GIRLING assembly:- Renault 11 C 04/1983 to 06/1985 Cléon-Fonte 1108cm3 48hp (C1E-)- Renault 11 C 07/1986 to 06/1988 Cléon-Fonte 1237cm3 55hp (C1G-)- Renault 11 TC 04/1983 to 06/1985 Cléon-Fonte 1108cm3 48hp (C1E-)- Renault 11 TC 07/1986 to 06/1988 Cléon-Fonte 1237cm3 55hp (C1G-)- Renault 11 GTC 04/1983 to 06/1985 Cléon-Fonte 1108cm3 48hp (C1E-)- Renault 11 TL 04/1983 to 06/1985 Cléon-Fonte 1397cm3 60hp (C1J-)- Renault 11 TL 07/1985 to 06/1988 Cléon-Fonte 1397cm3 68hp (C2J-)- Renault 11 GTL 04/1983 to 06/1985 Cléon-Fonte 1397cm3 60hp (C1J-)- Renault 11 GTL 07/1985 to 06/1988 Cléon-Fonte 1397cm3 68hp (C2J-)- Renault 11 GTS 04/1983 to 06/1985 Cléon-Fonte 1397cm3 72hp (C2J-)- Renault 11 GTX 02/1984 to 06/1988 Cléon-Fonte 1721cm3 82hp (F2N-)- Renault 11 TXE 02/1984 to 06/1988 Cléon-Fonte 1721cm3 82hp (F2N-)- Renault 11 TLE 04/1983 to 06/1985 Cléon-Fonte 1397cm3 60hp (C1J-)- Renault 11 TSE 04/1983 to 06/1985 Cléon-Fonte 1397cm3 72hp (C2J-)- Renault 11 Turbo 03/1984 to 08/1986 Cléon-Fonte 1397 cm3 105hp (C1J)- Renault 11 Turbo 09/1986 to 06/1988 Cléon-Fonte 1397 cm3 115hp (C1J)- Renault 11 TD 04/1983 to 06/1988 1596cm3 55hp (F8M-)- Renault 11 GTD 03/1984 to 06/1988 1596cm3 55hp (F8M-)
RENAULT R14 : all TRW models from 10/1976 to 06/1983
RENAULT R18 TRW/GIRLING::- Renault 18 R1340 04/1979 to 06/1984 Cléon-Fonte 1397cm3 64hp (C1J)- Renault 18 TL R1340 04/1978 to 06/1989 Cléon-Fonte 1397cm3 64hp (C1J)- Renault 18 GTL R1340 04/1978 to 06/1981 Cléon-Fonte 1397cm3 64hp (C1J)- Renault 18 TD/GTD R1344 07/1980 to 06/1984 Douvrin 2068cm3 67hp (J8-852)
RENAULT FUEGO with TRW/GIRLING assembly : - Renault Fuego TL 03/1980 to 06/1985 Cléon-Fonte 1397cm3 64hp (C1J)- Renault Fuego GTL 03/1980 to 06/1983 Cléon-Fonte 1397cm3 64hp (C1J)- Renault Fuego GTL 07/1983 to 06/1985 Cléon-Alu 1647cm3 74hp (A2M-843)
EXPRESS 1.1L Cléon with TRW/GIRLING mounting

This SASIC left rear wheel cylinder for Peugeot 504 with BENDIX system - 22mm - M10 is true to original.
The body of this right rear wheel cylinder for Peugeot 504 is compatible with BENDIX-mounted 504s from July 1975. Please refer to the detailed technical specifications below.
It has also been fitted to Peugeot 505s.

This LPR rear brake cylinder for Peugeot 204 and 304 (04/1965-10/1980) - 23.81mm - M10x1 is an excellent quality reproduction.
This LPR wheel cylinder for Peugeot 204, 304 and 305 is compatible with a large number of 204 and 304 models (see serial numbers below). It continued its career on 305 sedans and station wagons.
Compatible models :
PEUGEOT 204 04/1965-06/1976- PEUGEOT 204 BREAK DIESEL; Diesel 5hp; XLD 1255 cm3 40 bhp; 1968-1973 from serial number 7987371- PEUGEOT 204 BREAK DIESEL; Diesel 5hp; XL4D 1357 cm3 45 hp; 1973-1976 from serial number 8341274- PEUGEOT 204 CABRIOLET; Petrol 6hp; XK4 1130 cm3 55 bhp; 1969-1970 all models- PEUGEOT 204 COUPÉ 2+2 ; Petrol 6hp ; XK4 1130 cm3 55 bhp ; 1969-1970 all models- PEUGEOT 204 GL ; Petrol 6hp ; XK 1130 cm3 53 bhp ; 1965-1969 from serial number 9254615- PEUGEOT 204 GL ; Petrol 6hp ; XK4 1130 cm3 55 bhp ; 1970-1974 from serial number 9254615- PEUGEOT 204 GL ; Petrol 6hp ; XK5 1130 cm3 59 bhp ; 1975-1976 from serial number 9254615- PEUGEOT 204 LD ; Diesel 5hp ; XL4D 1357 cm3 45 bhp ; 1975-1976 all models
PEUGEOT 304 10/1969-10/1980- PEUGEOT 304 ; Petrol 7hp ; XL3 1288 cm3 65 c ; 1970-1976 from serial number 3733770- PEUGEOT 304 ; Petrol 7hp ; XL5 1290 cm3 65 hp ; 1976-1979 from serial number 3733770- PEUGEOT 304 BREAK GLD ; Diesel 5hp ; XL4D 1357 cm3 45 hp ; 1977-1979 all models- PEUGEOT 304 BREAK GLD ; Diesel 6hp ; XID 1548 cm3 47 bhp ; 1980-1980 all models- PEUGEOT 304 CABRIOLET ; Petrol 7hp ; XL3 1288 cm3 65 bhp ; 1970-1972 all models- PEUGEOT 304 CABRIOLET S ; Petrol 7hp ; XL3S 1288 cm3 74,5 bhp ; 1973-1975 all models- PEUGEOT 304 COUPÉ 2+2 ; Petrol 7hp ; XL3 1288 cm3 65 bhp ; 1970-1973 all models- PEUGEOT 304 COUPÉ 2+2 S ; Petrol 7hp ; XL3S 1288 cm3 74.5 bhp ; 1973-1975 all models- PEUGEOT 304 GLD ; Diesel 5hp ; XL4D 1357 cm3 45 bhp ; 1977-1979 from serial number 3733770- PEUGEOT 304 S ; Petrol 7hp ; XL3S 1288 cm3 74,5 bhp ; 1972-1976 all models- PEUGEOT 304 SLS ; Petrol 7hp ; XL5S 1290 cm3 74,5 bhp ; 1977-1978 from serial number 3733770 onwards
PEUGEOT 305 (1977-1988)

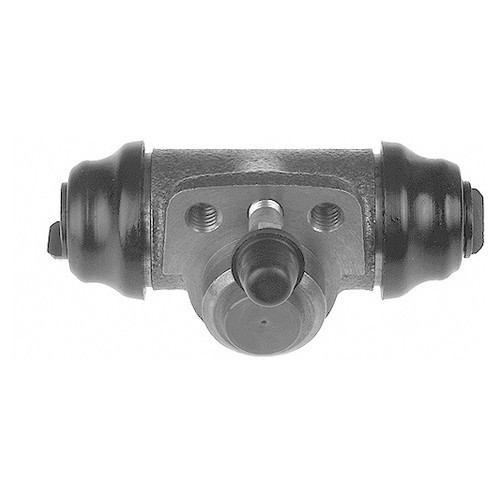

For Audi 80 up to chassis ->8C-P-090829

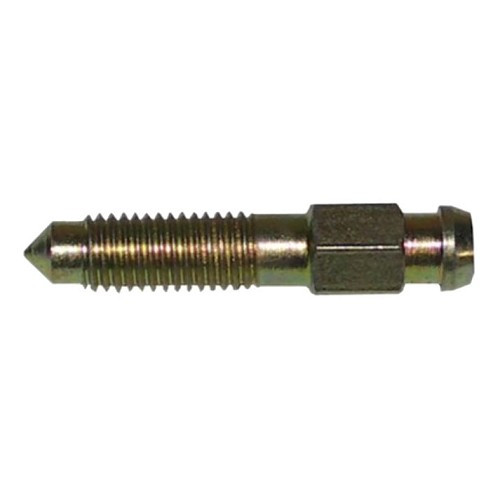

M7x38mm aluminum rear wheel cylinder bleederscrew for Audi 100:
- with rear drum brakes
Dimensions: M7x38mm
This conicalair bleed screw fits aluminum wheel cylinder OEM part number 6N0611053.

Suitable for piston 17.46 mm in diameter

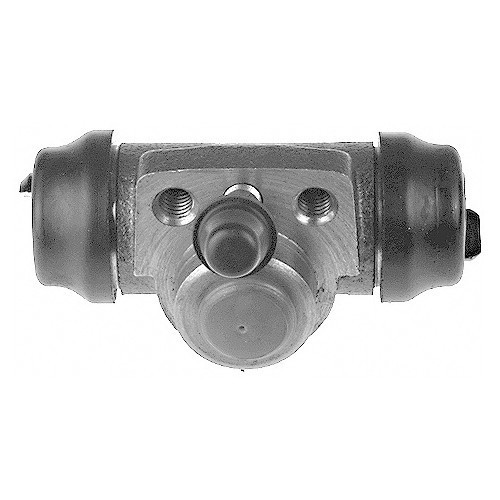

For Audi 80 (type 89, 8A):
- 1.6 70 hp (PP)
- 1.6 80 hp Turbo Diesel (RA, SB)
- 1.8 75 hp (RU)
- 1.8 S 88 hp and 90 hp (SF, JN, NE, PM)
- 1.9 68hp Diesel (1Y)

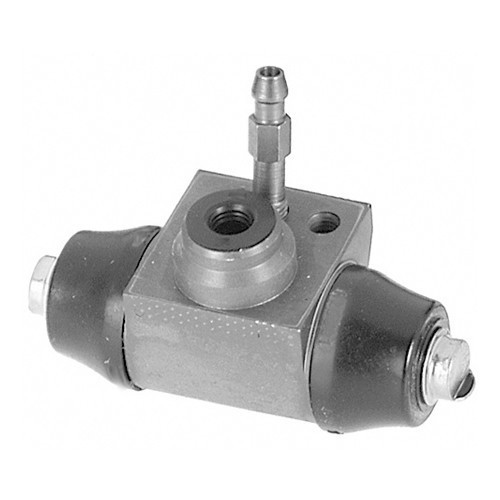

For Audi 80 (type 8C2) up to ->07/92:
- 1.9 TDi 90 hp (1Z)
- 2.0 90 hp (ABT)

For vehicles with automatic gearbox

For Audi 80 (type 81) from chassis 8252000179->:
- 1.3 55 hp and 60 hp(ZA, EP, ZF)
- 1.5 75 hp (YJ, ZB)
- 1.5 85 hp (ZC)
- 1.6 75 hp and 85 hp (YN, YP)

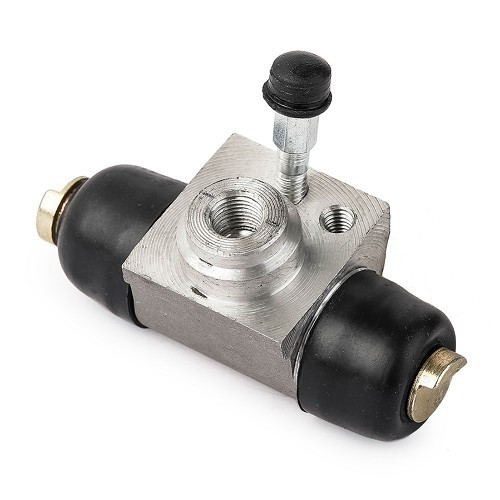

For Saloon from 09/91 ->12/94 and Estate from 07/92 ->01/96:
- 1.9 TDi 90 hp (1Z)
- 2.0 90 hp (ABT)

For Audi 80 from chassis 8C-P-000001 ->8C-P-090829:
- 1.9 TDi 90 hp (1Z)
- 2.0 90 hp (ABT)

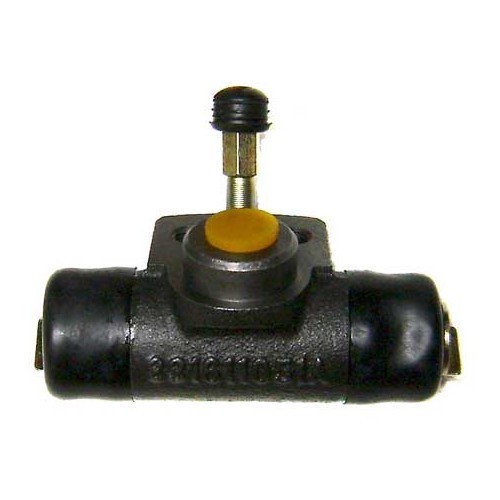

Cast iron rear wheel cylinder
For 15.87 mm diameter piston

For Audi 100 ->07/93

For Audi 100 ->07/93
