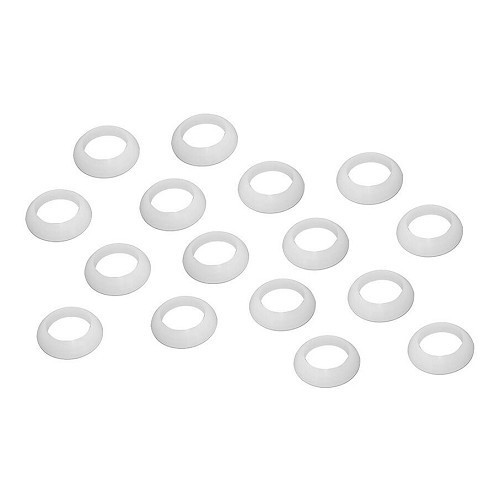

Jacket pipe seals

16 gaskets inside or outside on tube envelope.
Dimensions: 29 x 19.8 x 6 mm
Set of 16 gaskets for one engine
(attention, for Transporter: need 8 only on cylinder head side).

For VW:
- Beetle, Karmann-Ghia, Type 3, since 08/1960->
- Combi Split, 08/1960 ->07/1967
- Combi Bay Window, 1600 AD/AS, 08/1967 ->07/1979
- Transporter T25 / T3, 05/1979 ->07/1992
Engines: 1600 (CT), 1900 (DG, SP), 2100 (DJ, MV, SS, SR)

Block-side jacket tube gasket for Type 4 1700, 1800 or 2000 cc air-cooled engines.These gaskets are positioned between the block and each jacket tube containing the rocker arm rods, and are therefore essential to the block's airtightness , since the oil pressure is present there.A poor seal can lead to leaks and serious engine damage if the engine oil level is too low.
Sold individually.
Suitable for :- VW Combi Bay Window, 08/1971 ->07/1979- VW Transporter T25 / T3, 05/1979 ->12/1982- VW Type 4, 411, 412, 08/1969 ->07/1974

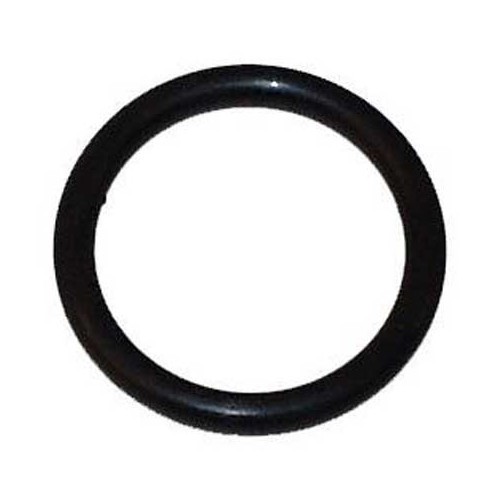

Envelope tube SPI seal for:
- 914-4

Engine block side.

Dimensions: 21.3 x 3.5 mm

Envelope tube SPI seal for:
- 914-4 from engine n° W0 057 461 ->

Cylinder head side.

Dimensions: 25.1 mm

Cylinderhead gasket for Type 4 1700, 1800 or 2000 cc air-cooled engines.These gaskets are positioned between the cylinder heads and each jacket tube containing the rocker arm rods, and are therefore essential to the proper sealing of the block, where the oil pressure is present.
A poor seal can lead to leaks and serious engine damage if the engine oil level is too low.
Sold individually.
For :- VW Combi Bay Window from 08/1971 to 07/1979- VW Transporter T25 / T3, 05/1979 ->12/1982- VW Type 4, 411, 412, 08/1969 ->07/1974

Sold individually

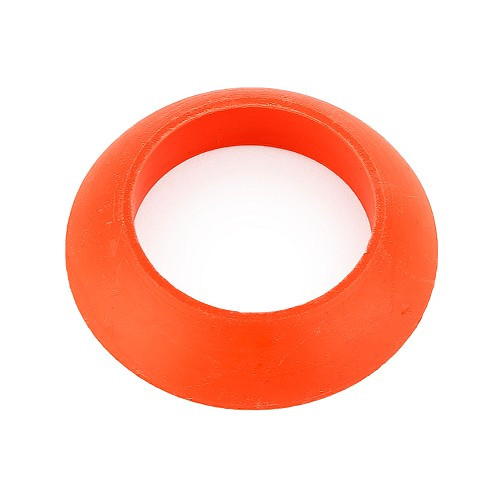

Inner or outer seal on jacket tube.
Dimensions: 29 x 19.8 x 6 mm
Need 16 per motor, sold individually.
(Transporter: need 8 on cylinder head side only).

For VW :
- Coccinelle, Karmann-Ghia, Type 3, since 08/1960->
- Combi Split, 08/1960 ->07/1967
- Bay Window Combi, 1600 AD/AS, 08/1967 ->07/1979
- Transporter T25 / T3, 05/1979 ->07/1992
Engines: 1600 (CT), 1900 (DG, SP), 2100 (DJ, MV, SS, SR)

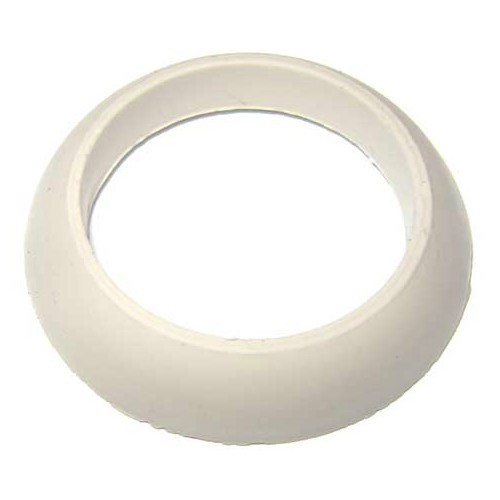

Set of 16 internal or externalgaskets on envelope tube, from Classic Line
Dimensions: 29 x 19.8 x 6 mm
(Transporter: need 8 on cylinder head side only).
For VW :- Coccinelle, Karmann-Ghia, Type 3, since 08/1960->- Combi Split, 08/1960 ->07/1967- Bay Window Combi, 1600 AD/AS, 08/1967 ->07/1979- Transporter T25 / T3, 05/1979 ->07/1992Engines: 1600 (CT), 1900 (DG, SP), 2100 (DJ, MV, SS, SR)

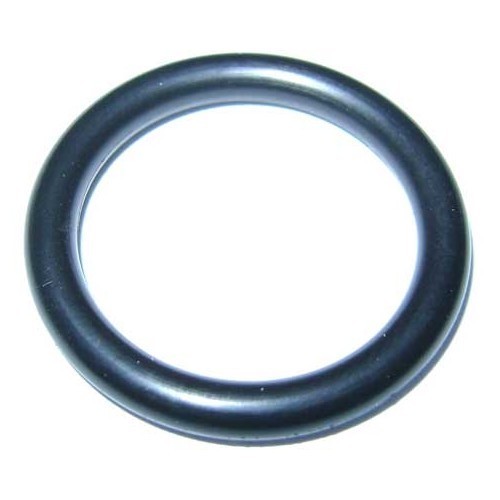

Inner seal on jacket tube.Need 8 on motor block side only. Sold individually.Dimensions 33 x 23.3 x 6 mmOriginal Volkswagen Classic Parts.
For VW Transporter T25 / T3 from 05/1979 to 07/1992Petrol engines- 1600cc (CT)- 1900cc (DF, DG, SP)-2100cc (DJ, MV, SR, SS)

Block-side jacket tube gasket for VW Combi Bay Window from 08/1971 to 07/1979 fitted with a Type 4 1700, 1800 or 2000 cc air-cooled engine.
These gaskets are positioned between the block and each envelope tube containing the rocker arm rods, and are therefore essential to the block's watertight integrity, since they contain the oil pressure.

Sold individually.

16 inner and outer silicone gaskets on VW Combi Split jacket pipes from 08/1960 to 07/1967 with type 1 engine

16 inner and outer silicone gaskets on VW Combi Bay Window tubes from 08/1967 to 07/1979 with engine type 1 :
- 1.6 petrol 50hp (AD/AS)

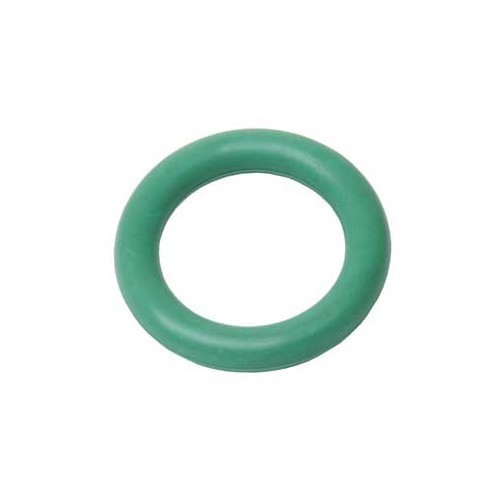

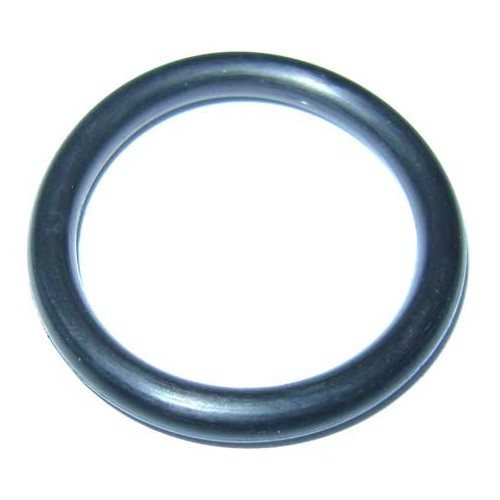

O-ring for oil return tube. Made from Viton, it is more resistant to oil and heat than the original rubber seal.
Suitable for Porsche :
- 911 all models from 1965 to 1989
- 964 all models from 1989 to 1994
- 914-6

Viton offers better resistance to high temperatures and oils than the original gasket.
