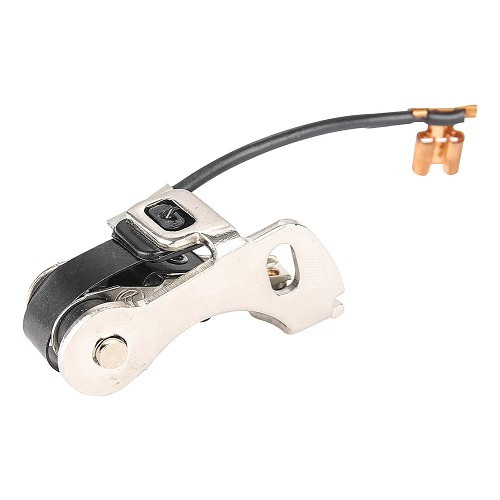

Capacitor and platinum screw

Platinized screws type Ducellier 71133 for Ducellier igniter

Often used on Peugeot, Renault, Citroën and Simca Talbot engines

Manufacturer references:

ALFA ROMEO: 116 55 05 011 03/02
CITROËN: 5,452,422 G, DM 211 17, 5,452,422
DAF: 224886
FIAT: 9916118
FORD: 1,497,349
PEUGEOT: 5927 09
RENAULT: 85 41,378, 08 54,137,800
TALBOT: S 20,089, S 26,840, 20,099 Z, 98,108, 280,840 S, 00,026,840 S
TOYOTA: 20,089 S, 20,099 Z
VOLVO: 3267443, 3100134-0

Equivalent:

VALEO: D304
BERU: 0340100219, KS 900
ACDelco: CS 8075
BOSCH: 1,237,013,808, 1,237,013,910
BREMI: 1,386, 1,386 V
DODUCO: 567
DUCELLIER: 608012, 71133
FACET: 1.3655FEMSA: 33827-4
INTERMOTOR: 22900
LUCAS: CS 219 40003, DSB 241, DSB 221, CS 21
Motorcraft: EDP 24, EDP 152
SCHIER: 2234
SEV-MARCHAL: 409 10035

Platinum screws type Ducellier 582018 for Ducellier igniter

Used vehicles type Citroën CX, Renault 4, 5, 16 ,18 ,20, Alpine, Fuego

CITROËN: 95,534,913
RENAULT: 77 01 200,739

Equivalent:

BERU: 0340100574, KS 574
BOSCH: 1,237,013,838
BREMI: 2391
DODUCO: 540
DUCELLIER: 582018
FACET: 1.3686
FEMSA: 33827-17
INTERMOTOR: 22380
LUCAS: CS 219 40024, DSB 204, CS 204
Motorcraft: EDP 106
SCHIER: 3207
UNIPART: GCS 193
SEV: 400 12 203

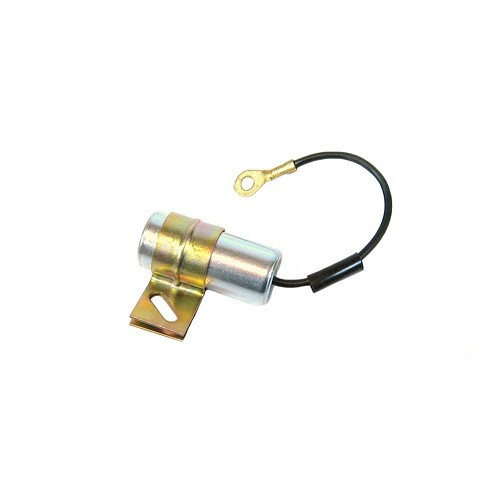

Capacitor 12V for Ducellier igniter

Dimensions 17x38,5 mm
Fixed by round lug
Capacity 0,25 µf

Manufacturer references:

ALFA ROMEO : 116 55 05 011 03/04
CITROËN : 5948 05, 5 452 417, 5948 06, 5948 07, 95 624 993, DM 211 8, 5948 14
FIAT : 9934266
LANCIA: 9934266
PEUGEOT: 5948 14, 95 624 993, DM 211 8, 5 452 417, 5948 06, 5948 05, 5948 07
RENAULT: 77 01 202 521, 08 52 174 300, 05 92 112 404, 08 53 712 500, 592 112 404, 77 01 402 250, 853 712 500, 77 01 021 374, 77 01 022 130, 77 01 021 676
SEAT: 9934266
TALBOT: 28,829 V, 28,829 00

Equivalent:

BOSCH: 1,237,330,801
BREMI: 3385
BERU: 0,030,100,138, ZK 138
DODUCO: 6303, 6304
DOWAL: 62,004
DUCELLIER: 22820, 9504, 1214, 1205, 1202, 1203, 1185, 607453, 599200, 1203 C, 1216, 9534, 19421, 611095, 608316, 21092, 19403, 611081, 9507, 9537, 9500, 1217, 1203 B, 607870, 582168, 1206, 611599, 605308, 582349, 1205 D, 9533, 612233, 612234
LUCAS: C 21
Motorcraft: EDC 62, EDC 202
PARIS-RHONE: 90,505, 72,724 K, 72,724, 90,505
WUNIC-SIMCA: 62,050,518, 62,050,518
VALEO: D 703, D 708

This D703 capacitor for Peugeot - SEV - DUCELLIER is compatible with all 04 series models.
This capacitor is an ignition wear part for Peugeot 204, 304, 404, 504, 505 and J7 petrol engines up to 2L displacement.It's part of your vehicle's first-aid kit.Like any capacitor, it can "snap" following a power surge or slight short-circuit, leaving you on the side of the road.
It is compatible with a wide range of vehicles of all makes.

The DUCELLIER 12V banana plug capacitor is a wear part in the ignition systems of most vehicles with platinum-plated screws.Equipped with a "banana" plug, it's part of your old car's first-aid kit.
Like any capacitor, it can "snap" as a result of overvoltage or a slight short-circuit, leaving you on the side of the road and obliging you to call in a mechanic for a part that can be replaced in 5 minutes.

Replacement platinum screws .
Brand: BOSCH
The breaker ensures a good ignition spark.
Remember to replace it.

For VOLKSWAGEN Combi Split Brazil (1957-1975) equipped with original Bosch igniter or 009.

Platinum screws BOSCH for Bmw E3 : - Compatible with all Bmw E3 versions from 09/1973 to 02/1977 including 3.0 if engine code m30. Platinum-plated replacementscrews .
The ignition switch ensures a good ignition spark.
Remember to replace it.

Replacement BOSCH platinum screws for VW LT from 1976 to 1996 for 4- or 6-cylinder petrol engines.
The ignition switch is in good condition and provides a good ignition spark.
Remember to replace it.

Suitable for E21:
- 316 M10
- 318 M10
- 320 M10
- 320 M20
- 320i M10

Suitable for E12:
- 518 M10
- 520 M10 & M20
- 520i M10 & M20
- 525 M30
- 528 M30

For all E10 models:
- 1502 to 2002 Turbo

BOSCH Platinum screws for Bmw E9:

Bmw E9 :

- 2.5 cs 6cyl 150hp from 05/1974 to 11/1975 (engine code m30)
- 2800 cs 6cyl 170hp from 12/1968 to 03/1971 (engine code m30)
- 3.0 cs 6cyl 180hp from 04/1971 to 11/1975 (engine code m30)
- 3.0 csl 6cyl 206hp from 09/1972 to 06/1973 (engine code m30)

Warning! Not suitable for Bmw E9 3.0csi and 3.0 csil engine code m30.

Replacement platinum screws .
Brand: BOSCH
The breaker ensures a good ignition spark.
Remember to replace it.

For VW Cox, Karmann-Ghia, type 3, Kübel 181, Combi Split and Bay Window equipped with original Bosch igniter or 009.
With engine 1200, 1300, 1500, 1600cc
Years: (08/1970-07/1979)

For Golf 1 and Scirocco if ignition not transistorized :- 1.5 and 1.6 with carburetor- 1.6 GTi 110hp (EG)

BOSCH Platinum screws for Volkswagen Golf 2
For VW Golf 2 and Jetta 2 up to 1985:- 1.6 carburettor all models with non-transistorized ignition
Original BOSCH quality

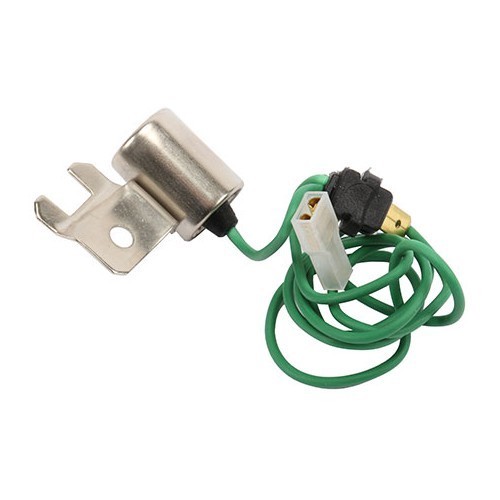

Igniter capacitor

Identification :
Notch on plug: round shape.

Having equipped (original) :
- VW Cox

Condensateur d'allumeur
encoche sur la prise forme carrée.

Pour VW :
- Coccinelle & Combi depuis 01/1973->
- Transporter T25 / T3, 05/1979 ->07/1984
avec allumeur conventionnel à vis platinées
jusque châssis n°->24-E-155 000.

Condenser on genuine BOSCH 009 centrifugal igniter (without vacuum capsule), model with special mounting bracket and square socket with square notch.

BOSCH aluminum ignition condenser for Porsche 356 :

-> Porsche 356 A :
- 356 A 1300 - 44 hp (506/1) from 1956 to 1957
- 356 A 1300 S - 60 hp (589/2) from 1956 to 1957
- 356 A 1600 - 60 hp (616/1) from 1956 to 1959
- 356 A 1600 S - 75 hp (616/2) from 1956 to 1959

-> Porsche 356 B T5 :
- 356 B 1600 - 60 hp (616/1) from 1960 to 1961
- 356 B 1600 S - 75 hp (616/2) from 1960 to 1961
- 356 B 1600 Super 90 - 90 hp (616/7) from 1960 to 1961

-> Porsche 356 B T6 :
- 356 B 1600 - 60 hp (616/1) from 1962 to 1963
- 356 B 1600 S - 75 hp (616/12) from 1962 to 1963
- 356 B 1600 Super 90 - 90 hp (616/7) from 1962 to 1963

-> Porsche 356 C :
- 356 C 1600 - 75 hp (616/15) from 1964 to 1965
- 356 SC 1600 - 95 hp (616/16) from 1964 to 1965

BOSCH aluminum ignition condenser for Porsche 914-4 :

- 914-4 1.7 - 80 hp (022-W) from 1970 to 1973
- 914-4 1.7 - 80 hp (022-EA) from 1972 to 1973
- 914-4 1.7 - 72 hp (022-EB) from 1972 to 1973
- 914-4 1.8 - 85 hp (021-AN) from 1974 to 1976
- 914-4 1.8 - 76 hp (022-EC) from 1974 to 1976
