Liners and pistons

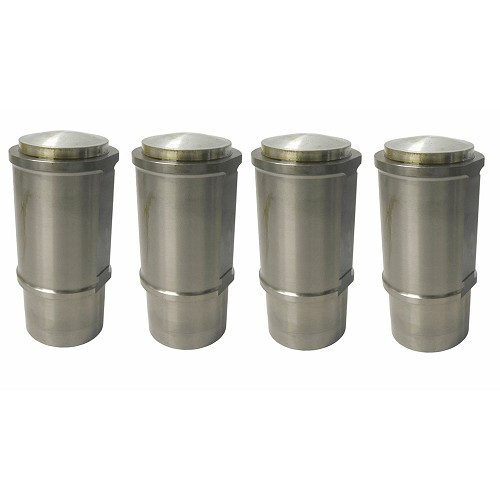

This piston sleeve kit for Citroën HY (09/1963-12/1981) - 78mm is made in Europe.

This piston sleeve kit for HY with 3-bearing 1911cc engine is specific to the latest models equipped with a 11D engine with dished pistons and increased compression.

It includes :
- 4 liners and 4 crowned pistons: 78mm
- 4 piston pins: diam. 20mm
- 4 ring sets: 2.5mm,2.5mm,4.5mm

Compatible models :
- TYPE H pickup - bed/cab 1200 Kg T.A, Type HP from 05/1955 to 09/1958, Engine Type 11 "perfo" 1911cc (56hp)
- TYPE H pickup - tray/cab 850 Kg T.A, Type HZP from 05/1955 to 12/1959, Engine Type 11 "perfo" 1911cc (56hp)
- TYPE HY Citroën HY 1200kg, Type HY from 10/1958 to 09/1963, Engine Type 11 "perfo" 1911cc (56hp)

- TYPE HY Citroën HY 1200kg - 78, Type HY 78 from 09/1963 to 09/1968, Engine Type 11cv 1911cc (48cv)
- TYPE HY Citroën HY 1200kg - 78, Type HY 78 from 10/1968 to 12/1981, Engine Type 11cv 1911cc (58cv)
- TYPE HY Citroën HY 850kg - 78, Type HZ 78 from 09/1963 to 09/1968, Engine Type 11cv 1911cc (48cv)
- TYPE HY Citroën HY 1000kg- 78, Type HZ 78 from 10/1968 to 12/1981, Engine Type 11cv 1911cc (58cv)
- TYPE HY Citroën HY - plateau/cabine 1200kg - 78, Type HX from 01/1967 to 09/1968, Engine Type 11cv 1911cc (48cv)
- TYPE HY Citroën HY - plateau/cabine 1200kg - 78, Type HX from 10/1967 to 09/1969, Engine Type 11cv 1911cc (58cv)
- TYPE HY Citroën HY - hydraulic platform/cab 1200kg - 78, Type HW from 10/1969 to 12/1981, Engine Type 11cv 1911cc (58cv)

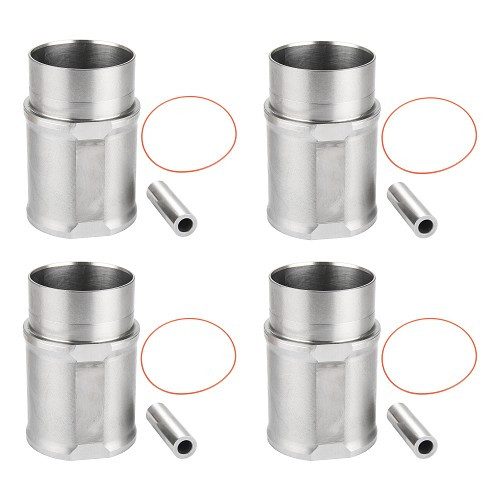

This MAHLE displacement kit for Renault 11 and Renault 9 Turbo (03/1984-1989) is original quality.

This MAHLE liner-piston set for Renault 9 and 11 turbo is of superior quality. High-quality remanufactured, it enables you to refurbish the liners and cylinders of the boiling hot Cléon cast-iron turbo compressor.

Kit includes :
- 4 liners and adjustment shims. Bore: 76mm, Diameter: 80.6mm, Height: 134 mm
- 4 pistons with rings, pins and clips. Diameter: 76mm

This piston sleeve kit for Citroën DS 19 (03/1961-09/1965) - 78mm is European made.

This piston sleeve kit for DS 19 with 3-bearing 1911cc engine is specific to the latest models equipped with a DS 1-03c, DS 1-03-f and DW 1-03a engine with dished pistons and increased compression.

It comprises :
- 4 liners and 4 crowned pistons: 78mm
- 4 piston pins: diam. 20mm
- 4 ring sets: 2.5mm,2.5mm,4.5mm

Compatible models :
- DS19 Sedan type DA, DS19 from 03/1961 to 03/1965, Engine type DS19 1911cc (83hp), 4-speed manual gearbox
- DS19 Sedan type DA, Hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox
- DS19 Cabriolet type DA, DS19 from 03/1961 to 03/1965, Engine Type DS19 1911cc (83hp), Mechanical 4-speed gearbox
- DS19 Cabriolet type DA, hydraulic DS19 from 03/1961 to 03/1965, Engine Type DW 1911cc (83hp), Hydraulic 4-speed gearbox

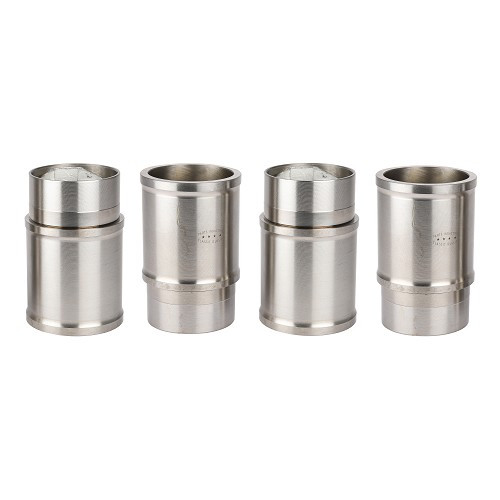

This piston sleeve kit for Citroën ID 21 Break (1966-1969) - 90mm is made in Europe.

This top-quality piston sleeve kit for Citroën ID21 Break is compatible with 2175cc DX, DX2 and DX3 engines.

It includes :
- 4 liners and 4 pistons: 90mm
- 4 piston pins: 25x74mm
- 4 ring sets: 2mm,2mm,5mm

Compatible models :

- ID21 station wagon type ID21 Serie F-DA, DJF from 1966 to 1968, Type DX engine 2175cc (109hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Serie F-DB, DJF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Serie F-DC, DJF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed manual gearboxDS 21 Sedans (2175cc) - (1966-1975) :
- ID21 station wagon type ID21 Série F-DF, DJF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Serie F-DA, DXF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Serie F-DB, DXF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Serie F-DC, DXF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Serie F-DF, DXF from 1966 to 1968, Engine Type DX 2175cc (109hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Serie F-DA, DJF from 1969, Engine Type DX2 2175cc (115hp), Mechanical 4-speed gearbox
- ID21 station wagon type ID21 Série F-DB, DJF de 1969, Engine Type DX2 2175cc (115hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Série F-DC, DJF de 1969, Engine Type DX2 2175cc (115hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Série F-DF, DJF de 1969, Engine Type DX2 2175cc (115hp), 4-speed manual gearbox
- ID21 station wagon type ID21 Serie F-DA, DXF de 1969, Engine Type DX2 2175cc (115hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Série F-DB, DXF de 1969, Engine Type DX2 de 2175cc (115hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Série F-DC, DXF de 1969, Engine Type DX2 de 2175cc (115hp), 4-speed hydraulic gearbox
- ID21 station wagon type ID21 Serie F-DF, DXF from 1969, Engine Type DX2 2175cc (115hp), 4-speed hydraulic gearbox
